Model Type:Analog Input & Output
Manufacturer:Allen Bradley
Model Number:1746-NIO4V
Number of Channels:2 Inputs, 2 Outputs
Input Range:-20 To 20 V Common Mode Voltage
Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS
Input Current Range:-30 To 30 MA Absolute
Output Range:-10 To 10 V, 1 LSB
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Current:-10 To 10 VDC, 1 LSB
Current Rating:Backplane: 55 MA
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis
Operating Voltage:24 VDC Plus/Minus 10%
Minimum Output Current:300 MA
Output Ranges:4 – 20 MA, 0 – 20 MA, 0 – 21 MA, 0 – 21.5 MA

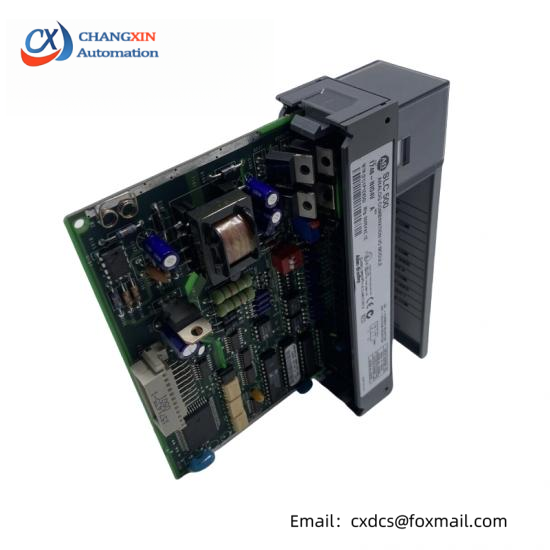

The Allen Bradley 1746-NIO4V SLC 500 Analog Module is designed for seamless integration into complex industrial control systems, ensuring reliable performance under a wide range of environmental conditions.
Equipped with advanced signal processing capabilities, this module provides exceptional precision and accuracy, making it suitable for applications that demand meticulous control over operational parameters.
Built to withstand the rigors of industrial use, this module boasts robust isolation and overvoltage protection, safeguarding against potential electrical hazards and ensuring system reliability.
Offering versatile connection options, the 1746-NIO4V is compatible with various communication protocols, facilitating seamless data exchange within industrial networks.
With its compact design and efficient power consumption, this module optimizes space utilization and reduces overall energy costs, contributing to a more sustainable and cost-effective operation.
