Model Type:SLC500
Model Number:1746-OX8
Manufacturer:Allen-Bradley
Isolation:500 VDC communication circuits
Backplane Isolation:1500 VAC
Processor:SLC 500
Enclosure Type:Open
Mounting Type:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% RH
Input Voltage:5 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:Backplane: 190 MA, Continuous per output: 0.25 A at 60°C, Continuous per module: 8 A at 60°C
Impedance:Greater than 1 MOHM

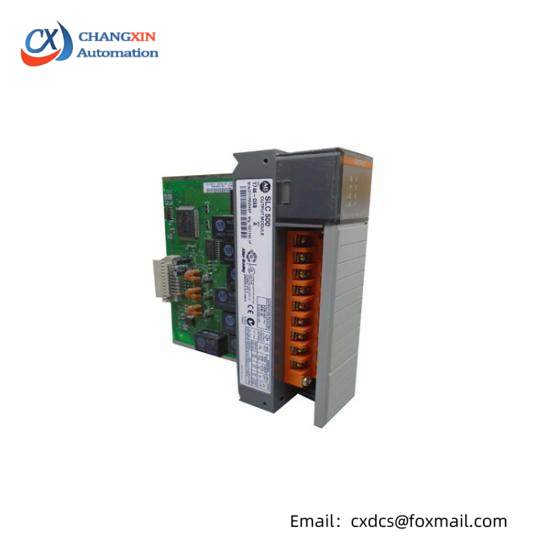

The Allen-Bradley SLC500 1746-OX8 Isolated Relay Output Module is engineered for high reliability and efficiency in industrial automation environments. This module ensures seamless integration with Allen-Bradley’s comprehensive line of SLC500 PLCs, enhancing system performance and scalability.
With its robust isolation feature, the 1746-OX8 minimizes electrical noise and interference, guaranteeing precise control over machinery and processes. The SPST relay contacts are rated for 24VDC at 0.5A, ensuring reliable operation even under demanding conditions.
Ideal for applications requiring precise and isolated control signals, this module supports multiple communication protocols, including ControlNet, DeviceNet, and Universal Remote I/O, facilitating seamless integration within complex industrial networks. Its compatibility with various power supplies and operating environments makes it suitable for a wide range of industrial settings.
Crafted with precision, the Allen-Bradley SLC500 1746-OX8 is a testament to Allen Bradley’s commitment to quality and innovation. Its compact size, combined with a user-friendly interface, ensures easy installation and maintenance, minimizing downtime and maximizing operational efficiency.
Backed by Allen Bradley’s industry-leading support and warranty, this module is an indispensable addition to any industrial automation project. Whether you’re looking to upgrade existing systems or build new ones from the ground up, the Allen-Bradley SLC500 1746-OX8 Isolated Relay Output Module is your trusted partner for achieving peak performance and reliability.
