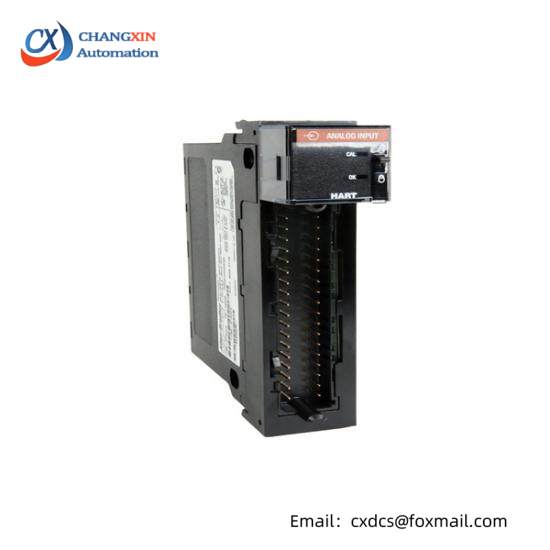

Model Number:1756-IF16H
Manufacturer:Allen Bradley
Type:Analog Input Module
Module Format:ControlLogix
Channels:16
Input Format:Differential Voltage or Current
Data Formats:Choice of three
Input Ranges:Multiple current and voltage
Module Filter:Present
Real Time Sampling:Available
Error Detection:Under Range, Over Range, Wire-off
Process Alarms:Supported
Communication Speed:10/100 Mbps
Protocol:Ethernet/IP
Power Supply:3 MA at 24 VDC
Mounting:Chassis
Temperature Range:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet
USB Port:Present
Power Dissipation:6.2 Watts
Isolation:Continuous 30 V
Enclosure Type:Open Type
Compliance:802.3 Compliant Shielded or Unshielded Twisted Pair
This module is specifically designed for applications requiring accurate and reliable analog input data collection in industrial environments. Its robust design ensures compatibility with various control systems, making it a versatile choice for integration.
With support for differential voltage or current sensing, the 1756-IF16H module can accurately measure changes in electrical signals, crucial for monitoring and controlling processes in industries such as manufacturing, power generation, and chemical processing.
Featuring a choice of three data formats, this module offers flexibility in how the collected data is interpreted by the system, enhancing its adaptability to different automation platforms.
Equipped with a real-time sampling feature, the module ensures that data is captured as it occurs, providing immediate feedback on process conditions without any lag, which is essential for real-time control and decision-making.
The inclusion of under range and over range detection capabilities allows for proactive monitoring of sensor health, preventing potential errors or system malfunctions due to improper signal levels, thus ensuring system reliability and safety.
