Brand:AB Electronics
Model:1336-BDB-SP4D
Series:74103-244-54
Module Category:Gate Driver
Operating Voltage:12V to 36V
Switching Speed:Up to 1MHz
Input Logic Level:TTL / CMOS
Output Type:Open Drain
Number of Channels:4
Max Current per Channel:500mA
Temperature Range:-40°C to +85°C
Board Size:100mm x 50mm
Power Consumption:≤ 1W

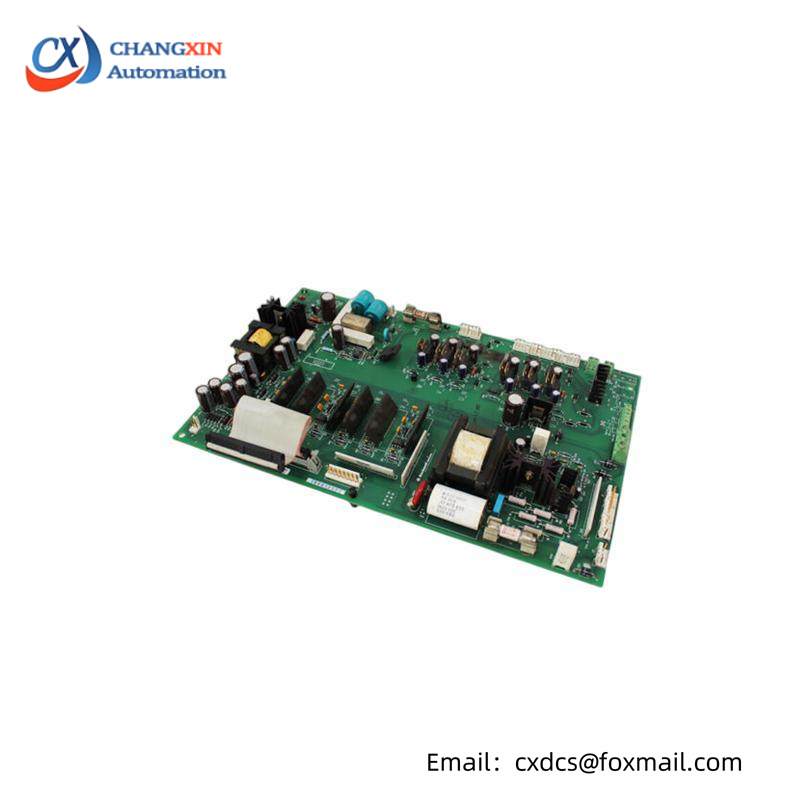

Introducing the AB 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit, engineered for exceptional performance in demanding industrial environments. This board is meticulously designed to handle complex switching tasks with unparalleled precision and efficiency.
Featuring a compact yet robust design, the kit is equipped with high-quality components to ensure optimal power transfer and minimal energy loss. Its versatile compatibility allows seamless integration into a wide array of applications, from motor control to power supply management.
Equipped with advanced control algorithms, this gate driver board provides precise voltage and current regulation, enhancing system stability and reducing wear on connected components. The high switching frequency ensures quick response times, making it ideal for applications requiring rapid signal processing.
Designed with durability in mind, the board is rated for operation within a broad temperature range (-40°C to +85°C), ensuring reliable performance across various industrial settings. It complies with stringent international safety standards, including UL, CE, and FCC certifications, ensuring user safety and compliance with global regulations.
Ease of installation and configuration make the AB 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit a perfect choice for engineers and technicians seeking to optimize their industrial automation systems. Its modular design allows for easy expansion and customization, meeting diverse project requirements without compromising functionality.
