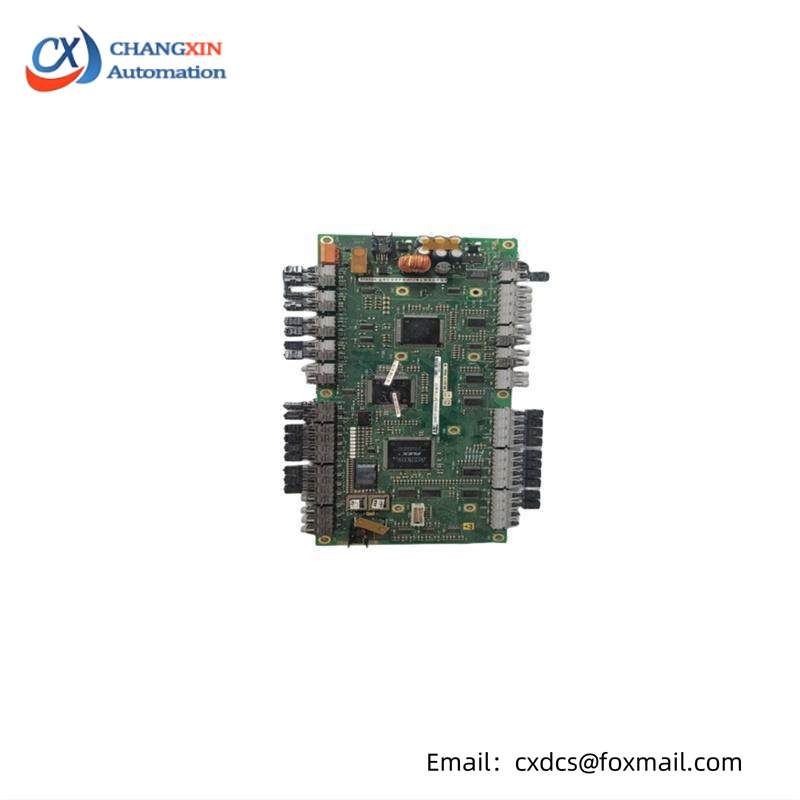

ABB 3BHB007030R0102 UFC760BE102 – High Precision Thermocouple Module

Type:Thermocouple Module

Model:UFC760BE102

Manufacturer:ABB

Part Number:3BHB007030R0102

Operating Range:-200°C to 1600°C

Accuracy:+/-0.7% of reading ± 1.5°C

Input Types:J, K, T, E, S, R, B, N, C

Output Signal:0.00 to 10.00V DC or 4.00 to 20.00mA DC

Power Consumption:Max. 20mW @ 12VDC

Operating Voltage:9 to 36V DC

Operating Current:Max. 15mA @ 12VDC

Operating Humidity:0 to 95% non-condensing

Environmental Protection:IP67

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +85°C

Dimensions:L x W x H = 102mm x 52mm x 45mm

Weight:Approx. 100g

    Precision engineered for accurate temperature sensing in demanding industrial applications, the ABB 3BHB007030R0102 UFC760BE102 Thermocouple Module ensures reliable operation even in extreme conditions.

    Capable of measuring temperatures ranging from -200°C to 1600°C with an impressive accuracy of +/-0.7% of reading ± 1.5°C, this module offers unparalleled reliability and performance.

    With support for various thermocouple types (J, K, T, E, S, R, B, N, C), it provides versatility for different industrial settings, ensuring compatibility with a wide range of systems.

    Offering both 0.00 to 10.00V DC and 4.00 to 20.00mA DC output signals, the module caters to diverse automation needs, supporting seamless integration into existing control systems.

    Designed with efficiency in mind, the ABB Thermocouple Module consumes minimal power (max. 20mW at 12VDC) and operates within a broad voltage range of 9 to 36V DC, ensuring stable performance across varied supply conditions.
