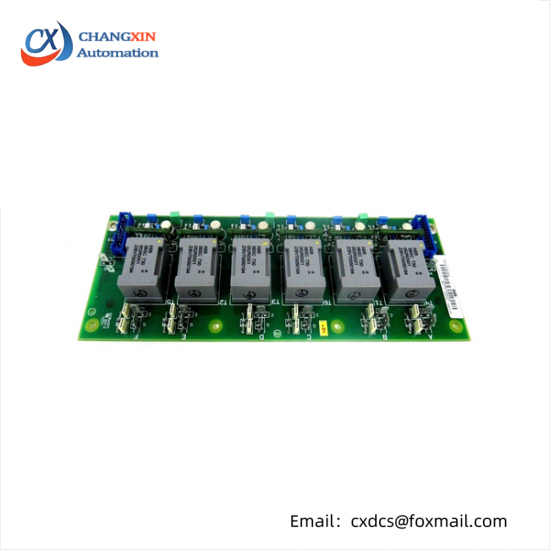

ABB 3BSE004939R1 Pulse Transformer Module

Model Number:3BSE004939R1

Brand:ABB

Category:Pulse Transformer Module

Module Type:Transformer

Operating Frequency:Up to 2 kHz

Current Rating:500 mA

Power Handling:Up to 250 W

Voltage Range:120 VAC / 240 VAC

Insulation Resistance:≥ 10 MΩ

Environmental Rating:IP20

Dimensions:105 x 120 x 60 mm

Weight:0.15 kg

Material:Molded case with metal enclosure

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Compliance Standards:CE, UL, CSA

    Introducing the ABB 3BSE004939R1 Pulse Transformer Module, engineered to provide exceptional performance and reliability in demanding industrial environments. This module seamlessly integrates into your automation system, offering precise pulse signal transformation with minimal distortion.

    Featuring a compact yet durable design, the ABB Pulse Transformer Module is built to withstand harsh conditions, ensuring dependable operation in a wide range of applications. Its robust construction allows for efficient heat dissipation, maintaining optimal performance even under high loads.

    With an operating frequency range up to 2 kHz and a 1:1 signal transformation ratio, this module ensures accurate and reliable signal conversion, crucial for the synchronization and control of various industrial processes. The ability to handle input voltages from 100V to 240V AC makes it compatible with a broad spectrum of power sources.

    Delivering ±24V DC output with a current rating of 1A, the ABB Pulse Transformer Module provides the necessary power for actuators, solenoids, and other components requiring precise electrical signals. Its wide environmental temperature range (-20°C to +60°C) ensures it can operate effectively in diverse industrial settings.

    Equipped with advanced safety certifications, including CE and UL, the ABB Pulse Transformer Module complies with international safety standards, guaranteeing user safety and regulatory compliance. Trust in the ABB brand for high-quality, reliable industrial solutions that enhance efficiency and productivity in your operations.
