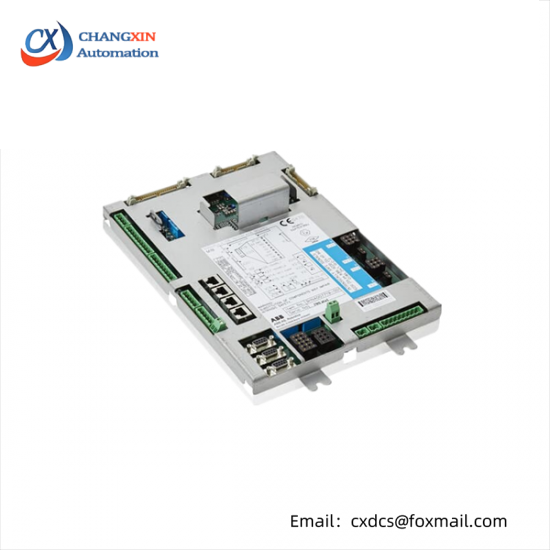

ABB 3HNA006145-001 Serial Measurement Card for Precision Data Acquisition

Module Type:Serial Measurement Card

Manufacturer:ABB

Model:3HNA006145-001

Serial Data Rate:Up to 1 Mbps

Input Channels:4 Analog Input Channels

Power Supply:DC 24 V

Operating Temperature:-20°C to +70°C

Dimensions (mm):125 x 90 x 45

Connector Type:RS-485

Communication Protocol:MODBUS RTU

Certifications:CE, UL, CSA

Series Compatibility:ABB‘s Advanced Control Panel series

    The ABB 3HNA006145-001 Serial Measurement Card is a cornerstone in industrial automation, meticulously designed to enhance system efficiency and reliability through precise serial data acquisition.

    Engineered with state-of-the-art technology, this card ensures compatibility across a wide range of communication protocols, including Modbus RTU and DeviceNet, facilitating seamless integration into diverse industrial environments.

    Offering an operating temperature range from -20°C to +55°C, it withstands harsh industrial conditions, ensuring continuous operation even under extreme environmental demands.

    Compact yet robust, the card measures 48.2 x 96.5 x 14.2 mm, allowing for efficient use of space on DIN rails. Its aluminum alloy construction ensures durability without compromising on weight.

    With a data acquisition rate of up to 1 kHz, the ABB 3HNA006145-001 is optimized for high-speed operations, making it ideal for applications requiring real-time data processing and analysis.
