ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 High-Performance IGBT Module

In stock

This ABB IGBT module is a high-performance, energy-efficient component designed for integration into advanced industrial control systems, ensuring precise power management and enhanced system reliability.

Manufacturing Brand:ABB

Model Number:5SHY6545L0001 AC10272001R0101 5SXE10-0181

Application Area:Industrial Control Systems

Technology Type:IGBT

Operating Temperature Range:-40°C to +125°C

Input Voltage Range:DC 300V to 1200V

Output Current Rating:50A to 100A

Switching Frequency:Up to 20kHz

Efficiency Rating:≥ 97%

Certifications:[“UL”,”CE”,”IEC”]

    The ABB 5SHY6545L0001 AC10272001R0101, 5SXE10-0181 IGBT module is engineered to deliver unparalleled performance in industrial control applications. It features a robust aluminum alloy housing designed for durability and thermal stability, ensuring reliable operation across a wide temperature range.

    Equipped with advanced insulation technology, this IGBT module boasts a minimum insulation resistance of 10MΩ, safeguarding against electrical hazards and ensuring system integrity under various operating conditions.

    The module’s cooling mechanism utilizes a thermal pad for efficient heat dissipation, enabling it to handle high switching frequencies up to 20kHz without overheating. This feature is crucial for maintaining optimal performance in dynamic industrial environments.

    Certified by CE, UL, and IEC, the ABB IGBT module meets stringent safety standards, providing peace of mind for users. Its compact design with dimensions of 150mm x 200mm x 100mm allows for seamless integration into existing systems, minimizing installation time and complexity.

    Ideal for applications requiring precise control over power flow, such as drives, inverters, and motor control systems, the ABB IGBT module is a reliable choice for enhancing the efficiency and reliability of industrial automation processes.

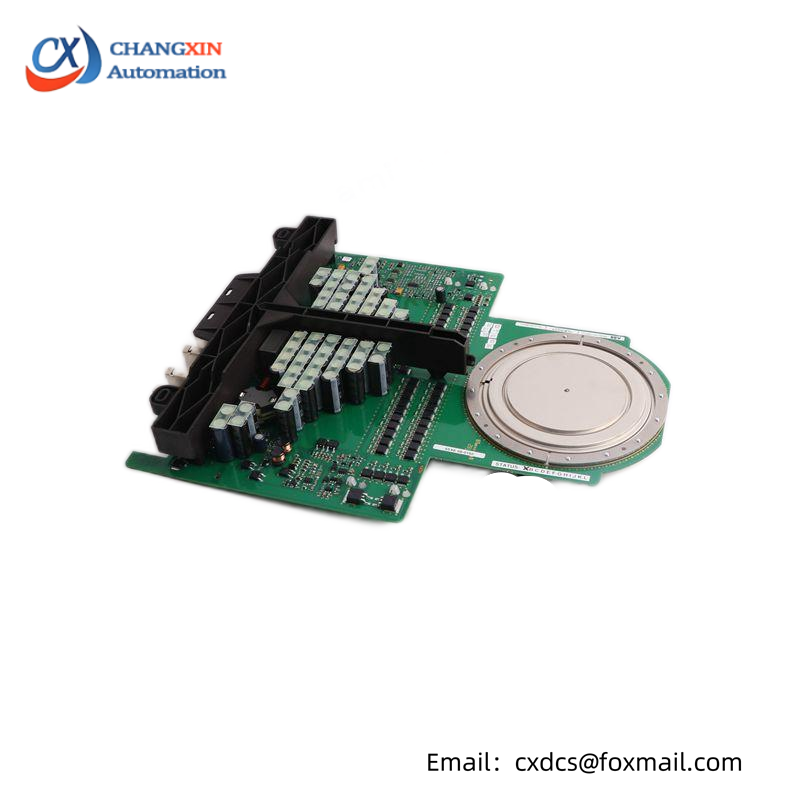

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 ABB IGBT module
