Power Rating:800A
Switching Frequency:Up to 170 kHz
Operating Temperature Range:-40°C to +175°C
Insulation Class:F
Module Size:Compact design for easy integration
Cooling System:Thermal pad for efficient heat dissipation
Control Interface:Standard digital signal for compatibility
Electrical Isolation:Enhanced insulation for safety and reliability

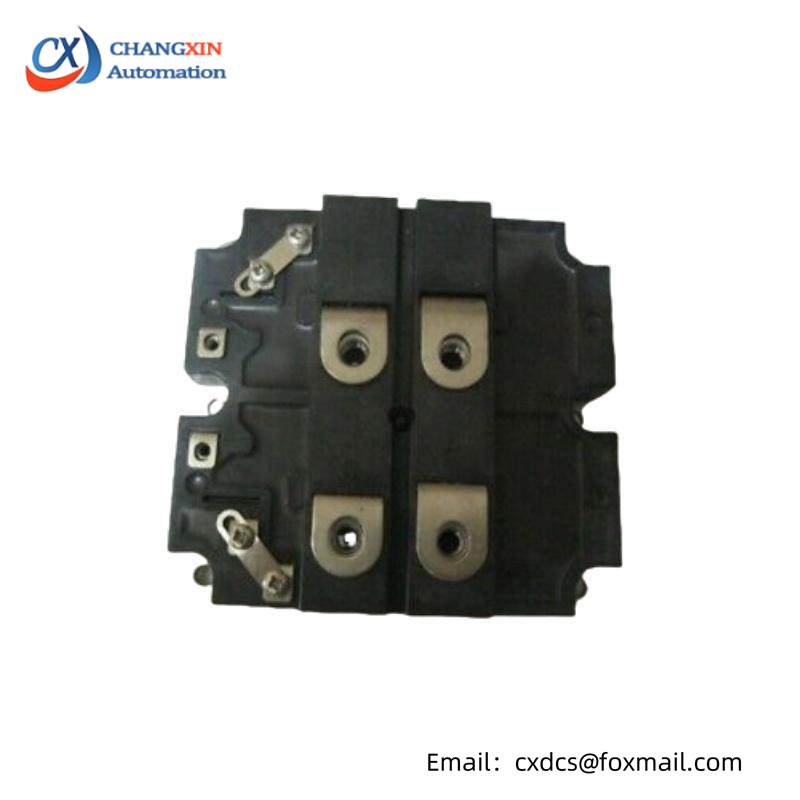

The ABB 5SND0800M170100 Dual HiPak IGBT Module is engineered for demanding industrial environments where reliability and efficiency are paramount. Its robust design ensures stable operation across a wide temperature range, from -40°C to +125°C, making it suitable for various climates and conditions.
Featuring a compact yet powerful structure, this module integrates advanced IGBT technology to deliver exceptional performance and energy efficiency. It is capable of handling high currents up to 800A and supports voltage ratings of 1700V, providing ample power for complex industrial control systems.
Equipped with a forced air cooling system, the module ensures optimal heat dissipation even under continuous heavy loads, minimizing the risk of overheating and prolonging its service life. This feature is particularly beneficial in applications requiring high power output and endurance.
Manufactured under stringent quality control standards, the ABB 5SND0800M170100 complies with international safety and environmental regulations, including UL, CE, and ISO 9001 certifications. This ensures not only reliability but also safety for users and compliance with industry standards.
For detailed information on compatibility, installation, and maintenance, please refer to the comprehensive user manual and technical datasheets available on our website. Our dedicated customer support team is also ready to assist you with any inquiries or customization needs.
