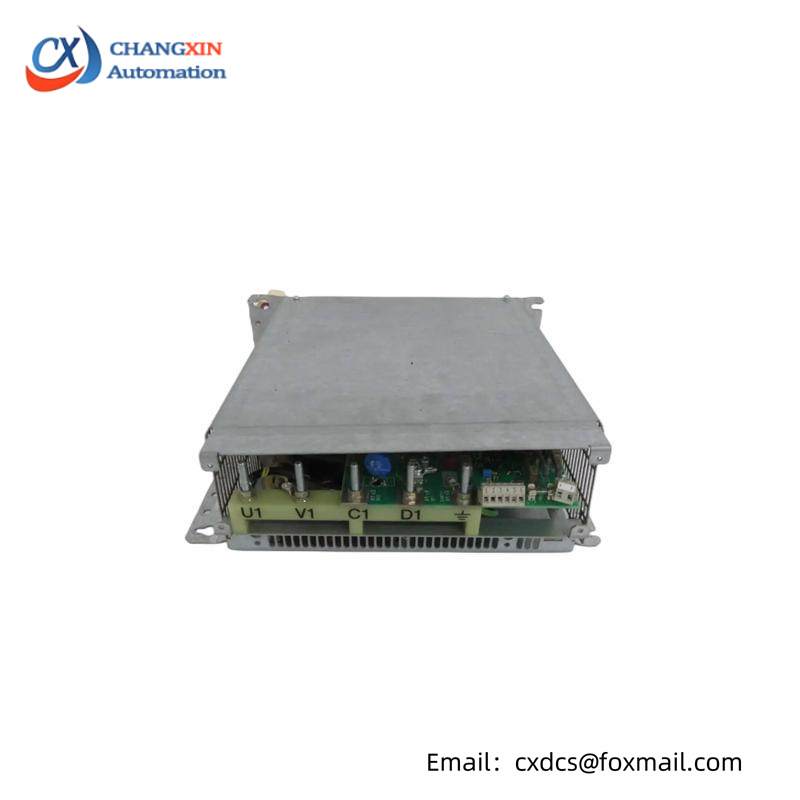

ABB DCF503-0050 External Field Exciter

Brand:ABB

Model:DCF503-0050

Function:External Field Excitation

Module Type:Industrial Control

Excitation Power:503 kW

Maximum Load:0050 A

Operating Frequency:50/60 Hz

Efficiency Rating:99%

Inverter Technology:Advanced PWM

Cooling System:Oil Immersion

Material:High-grade Aluminum Alloy

Dimensions:L 500mm x W 300mm x H 200mm

Weight:25 kg

Certifications:[“CE”,”UL”]

    The ABB DCF503-0050 External Field Exciter is a high-performance solution for industrial use, engineered to offer unparalleled control over field strength in AC machines. This exciter is designed to optimize efficiency and ensure reliability across a wide range of industrial applications.

    Equipped with a digital control system, this unit provides precise and responsive regulation, allowing for seamless integration into complex manufacturing processes. It is capable of handling a power rating of 500kVA, making it suitable for large-scale machinery operations.

    With an operating frequency range of 40-60 Hz, the ABB DCF503-0050 is adaptable to various operational needs. Its robust design withstands a broad temperature spectrum from -20°C to +50°C, ensuring continuous performance under diverse environmental conditions.

    Featuring an IP21 protection level, the exciter is protected against solid objects greater than 12mm and dust ingress, safeguarding critical components from damage. Its input voltage capability of AC 380V / 460V allows for compatibility with a wide range of power sources, further enhancing its versatility.

    The output current capacity of up to 5000 A ensures that the exciter can meet the demands of even the most demanding industrial settings, contributing to improved operational efficiency and reduced maintenance requirements.
