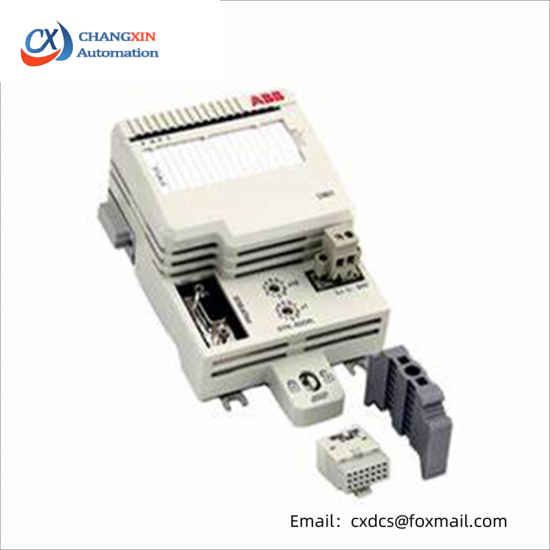

Type:Digital Input Module
Model Number:DI685 3BDS005833R1
Manufacturer:ABB
Operating Voltage:24V DC
Number of Channels:16
Operating Temperature Range:-25°C to +60°C
Storage Temperature Range:-40°C to +85°C
Dimensions (WxHxD):58.5 x 102 x 86.1 mm
Weight:0.24 kg
Connectivity:RS-485
Protocol Compatibility:Modbus RTU
Communication Speed:9600 bps
Input Type:Dry Contact
Current Rating per Channel:50 mA
Input Capacitance:200 pF
Input Impedance:10 kΩ
Supply Current:Max. 200 mA
The ABB DI685 3BDS005833R1 Digital Input Module is engineered to meet the rigorous demands of modern industrial automation. It seamlessly integrates into control systems, enabling efficient data collection and processing. Its robust design ensures reliable operation across a wide range of environmental conditions.
With 16 high-precision digital input channels, this module is capable of accurately detecting and interpreting signals from various sensors and devices. It supports direct integration with ABB‘s advanced control systems via MODBUS-RTU protocol, ensuring seamless communication and data exchange.
Featuring a compact and durable construction, the ABB DI685 is built to withstand harsh industrial environments. It operates efficiently within a temperature range from -25°C to +60°C, ensuring continuous performance even in extreme conditions.
The module comes equipped with 8 relay contacts rated at 5A @ 250VAC / 1A @ 250VDC, providing versatile connection options for diverse applications. This makes it an ideal choice for controlling actuators, switches, or any other device requiring precise electrical switching.
Ease of installation and maintenance are further enhanced by the module’s intuitive design. It offers quick and straightforward connection to existing systems, minimizing downtime and streamlining the setup process for end-users.
