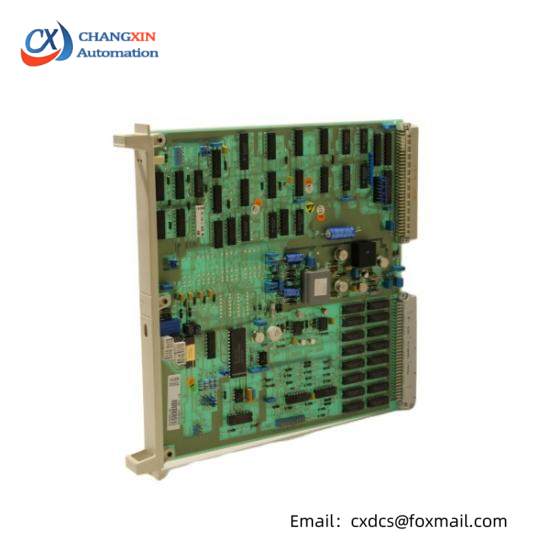

ABB DSAI145 5712001-HA RTD Input Module – Advanced Temperature Sensing Solution

Model:DSA145 5712001-HA

Manufacturer:ABB

Module Type:RTD Input Module

Temperature Range:-200°C to +850°C

Resistance Range:200 ohms to 200k ohms

Accuracy:+/- 0.05% of full scale

Operating Voltage:DC 24V

Current Consumption:Max 20mA

Response Time:Less than 1 second

Environmental Rating:IP67 rated

Installation Method:Panel Mount

Operating Temperature:-25°C to +85°C

Storage Temperature:-40°C to +85°C

    The ABB DSAI145 5712001-HA RTD Input Module is engineered to provide unparalleled precision in industrial temperature monitoring. This module utilizes Resistance Temperature Detectors (RTDs) to convert physical temperature changes into electrical resistance variations, which are then accurately translated into digital signals for real-time data acquisition.

    Equipped with a wide temperature range from -200°C to +850°C, it caters to diverse industrial applications, ensuring reliable performance across extreme conditions. Its high accuracy of +/- 0.05% of full scale ensures minimal error margins, making it ideal for critical processes requiring stringent control.

    Featuring an operating voltage of DC 24V and a current consumption of up to 20mA, this module is compatible with a variety of industrial power sources, enhancing its versatility. With a response time of less than one second, it provides instantaneous feedback, crucial for dynamic process control systems.

    The IP67 environmental rating guarantees robust protection against dust and water ingress, enabling its use in harsh environments without compromising performance. Designed for panel mounting, it facilitates easy integration into existing industrial setups, streamlining installation and maintenance procedures.

    Offering a temperature measurement range that spans from -40°C to +85°C for storage and operation respectively, the ABB DSAI145 5712001-HA RTD Input Module ensures compatibility and reliability across different operational scenarios. This makes it a versatile choice for manufacturers looking to enhance their monitoring capabilities and improve overall efficiency.
