Board Type:Digital I/O Module
Manufacturer:ABB
Model:DSQC 236D
Functionality:Servo Drive Control
Operating Voltage:24V DC
Current Rating:2A
Number of Channels:16 Input / 16 Output
Communication Interface:DeviceNet, CANopen, Ethernet/IP
Protocol Support:Modbus TCP/IP
Environmental Conditions:Temperature Range: -25°C to +70°C, Humidity: 5% to 95% RH without condensation
Certification:CE, UL, CSA, ISO 9001, ISO 14001

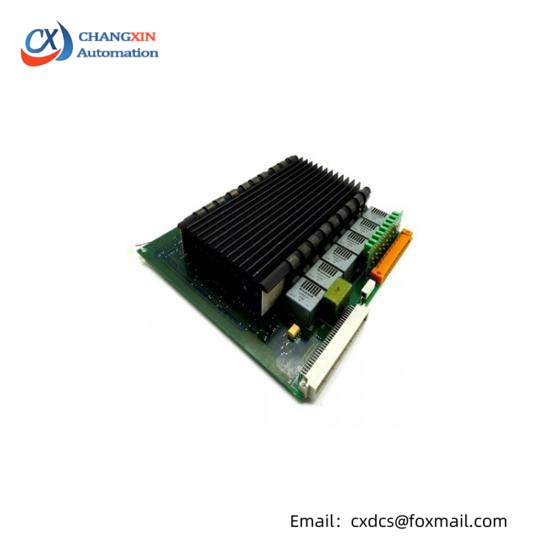

Integrating cutting-edge technology, the ABB DSQC 236D Servo Drive BOARD is engineered to deliver unparalleled performance in motion control systems. This module is meticulously designed for applications requiring high precision, such as robotic arms, CNC machinery, and automation processes.
Featuring a robust and compact design, the DSQC 236D is compatible with ABB’s latest drives, ensuring optimal communication and control over complex operations. Its high-speed processor operates at up to 10 MHz, enabling rapid response times and efficient processing.
With support for EtherCAT and DeviceNet protocols, the board facilitates seamless integration into existing network infrastructures, enhancing connectivity and data exchange between different components of the system.
Equipped with a wide input voltage range of 24V DC, the DSQC 236D Servo Drive BOARD ensures compatibility with a variety of power sources, making it suitable for diverse industrial environments. Its capacity to handle up to 2A per channel allows for flexible current management across different axes or functions.
Operable within a temperature range of -20°C to +70°C, this board is built to withstand harsh industrial conditions, ensuring reliable performance under varying environmental challenges. Additionally, it comes with 32 KB of RAM and 64 KB of Flash memory, providing ample space for storing control programs and data.
Experience enhanced productivity and reduced downtime with the ABB DSQC 236D Servo Drive BOARD. Its combination of advanced features and reliability makes it an ideal choice for engineers and manufacturers seeking to optimize their motion control systems.
