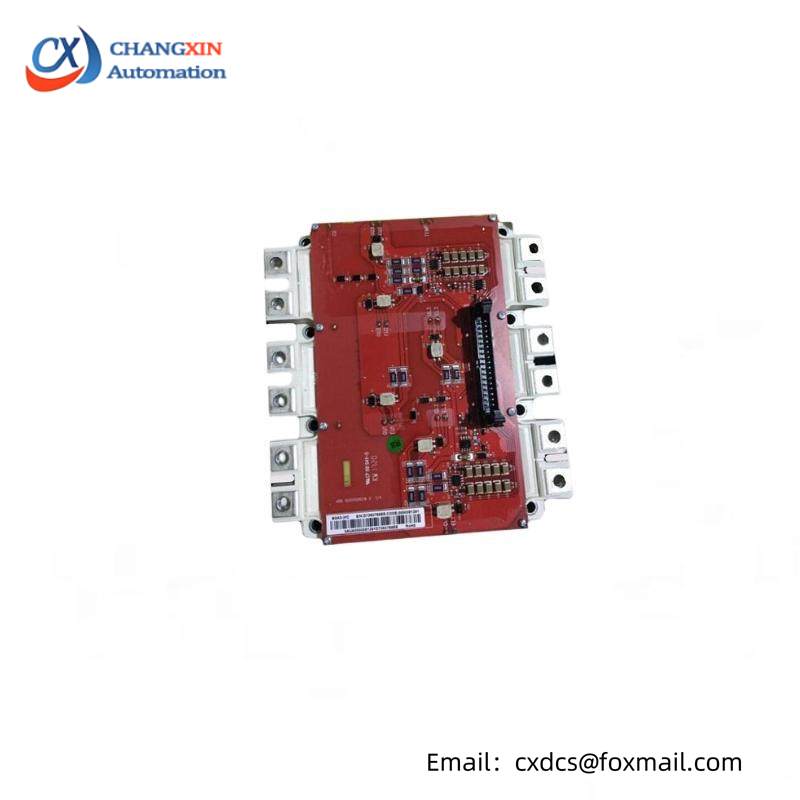

ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module

Model Number:FS500R17OE4D/BGAD-21C

Brand:ABB

Manufacturer:Infineon

Power Rating:500A at 1700V

Operating Temperature Range:-40°C to +175°C

Package Size:L x W x H: 150mm x 100mm x 30mm

Weight:0.5kg

Cooling Method:Natural convection cooling

Protection Level:IP20

Input Voltage Range:DC 300V to DC 1500V

Output Current:Continuous 500A

Insulation Resistance:≥10MΩ

Switching Frequency:Up to 25kHz

Di/dt Limit:≤50kA/s

dv/dt Limit:≤12kV/μs

    The ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module stands out for its exceptional performance in high-power applications. It is meticulously engineered to provide unparalleled power conversion efficiency, ensuring optimal energy management in industrial settings.

    With an operating temperature range from -40°C to +175°C, this module is designed to withstand harsh environmental conditions, making it suitable for use in extreme industrial environments. Its robust construction ensures reliability even under demanding conditions.

    Featuring a switching frequency of up to 20kHz, the module offers swift and precise control, enabling faster response times and smoother operation. This is particularly advantageous in applications requiring rapid power adjustments.

    The module boasts an insulation resistance of ≥10MΩ, which guarantees high electrical isolation and prevents unwanted leakage currents. This feature is critical for maintaining safety and preventing potential electrical hazards.

    The TO-247-3 package type and natural convection cooling method provide excellent heat dissipation capabilities, allowing for continuous high-power operation without overheating concerns. This ensures the longevity and stability of the module over extended periods of use.
