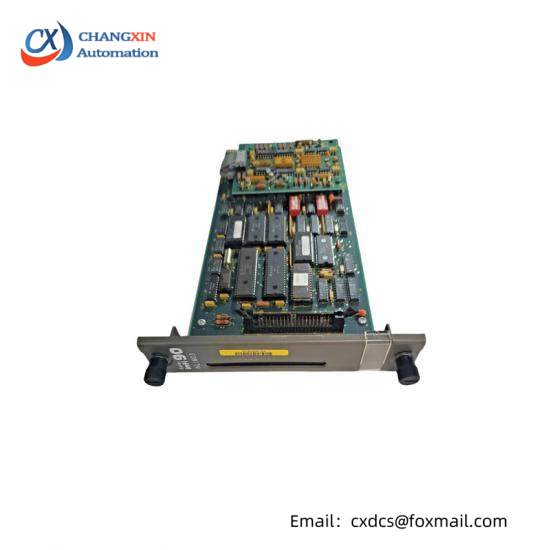

ABB INLIM03 Loop Interface Module – Precision Control in Industrial Automation

Manufacturer:ABB

Model:INLIM03

Type:Loop Interface Module

Input Current Range:4-20 mA or 1-5 V DC

Output Type:Relay Contacts

Power Supply:DC 24V

Operating Temperature:-20°C to +60°C

Enclosure Protection:IP20

Mounting:Panel-Mount

Dimensions:122 x 93 x 33 mm

Weight:0.2 kg

    The ABB INLIM03 Loop Interface Module is engineered to ensure high reliability and precision in industrial automation environments. Its compact design and durable construction make it ideal for a wide range of applications where accurate signal transmission is essential.

    Featuring a versatile input current range compatible with most field instruments, this module ensures compatibility and ease of integration with various control systems. It supports both 4-20 mA and 1-5 V DC inputs, catering to diverse system requirements.

    With relay contacts as the output type, the INLIM03 provides a robust means of controlling actuators or switching circuits based on the input signals received. This makes it particularly suitable for scenarios demanding precise control over process variables.

    Operated from a stable 24V DC power supply, the module maintains consistent performance across a broad temperature range (-20°C to +60°C), ensuring reliable operation under varying environmental conditions. The IP20 enclosure protection rating safeguards against dust and splashes of water, enhancing its durability and longevity in industrial settings.

    For convenient installation, the ABB INLIM03 is designed for panel mounting, allowing for easy integration into existing control panels. Its lightweight design and compact size facilitate efficient use of space, making it an ideal choice for both new installations and retrofit projects.
