Board Type:Inverter Driver Board
Model:JCAP-D1
Sub-Model:For Variable Speed Drives
Technology:High-Frequency PWM Inverter Technology
Input Voltage Range:200V to 690V AC
Output Current:Up to 1200A
Operating Temperature:-25°C to +50°C
Communication Interface:RS-485 Modbus-RTU
Protection Rating:IP20
Control Methods:V/F Control, Field Oriented Control (FOC)

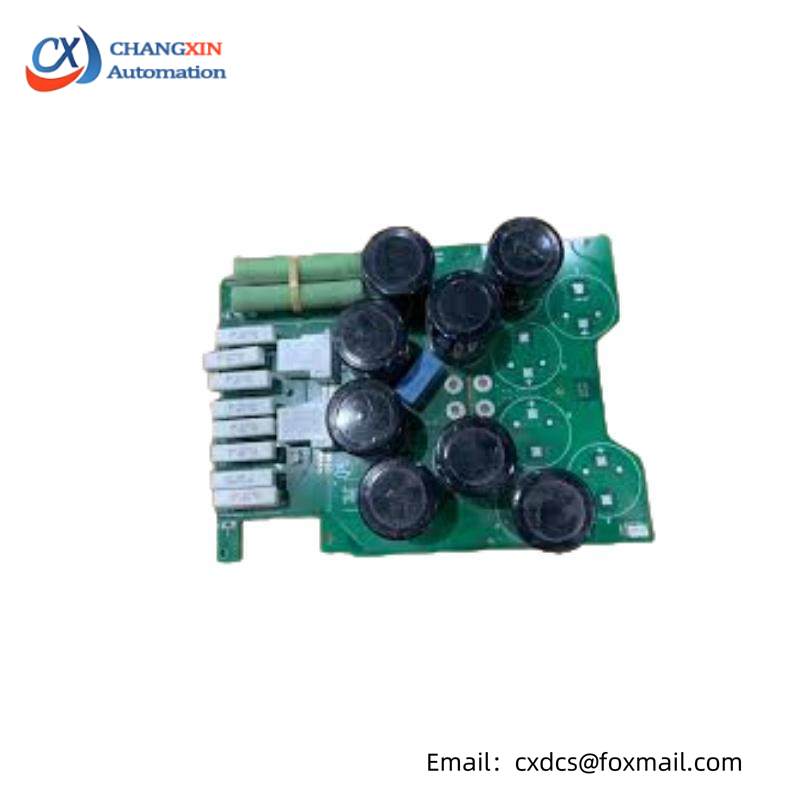

The ABB JCAP-D1 Inverter driver board is engineered with cutting-edge technology to ensure seamless integration into complex industrial control systems. It boasts a wide operating frequency range, allowing for precise control over motors in various applications.
Featuring an output voltage adjustable from 0 to 400 VDC, this board offers flexibility for different motor requirements, ensuring optimal performance across a broad spectrum of industries.
With input currents ranging from 1 to 20 A, the ABB JCAP-D1 is capable of handling a variety of load capacities, making it suitable for a multitude of industrial tasks.
Offering up to 20 kW of output power, this inverter driver board is designed for heavy-duty applications, delivering the power needed to drive large machinery efficiently.
Supporting multiple control protocols like Profinet, Modbus, and Ethernet, along with communication interfaces such as RS-485 and CANopen, the ABB JCAP-D1 ensures compatibility with a wide range of control systems, enhancing operational efficiency and connectivity.
