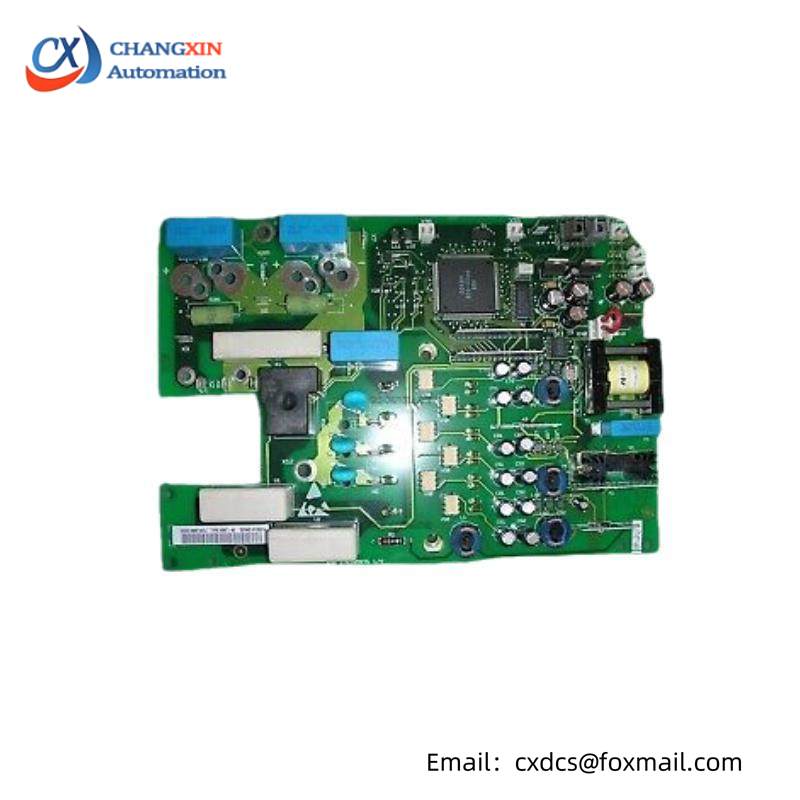

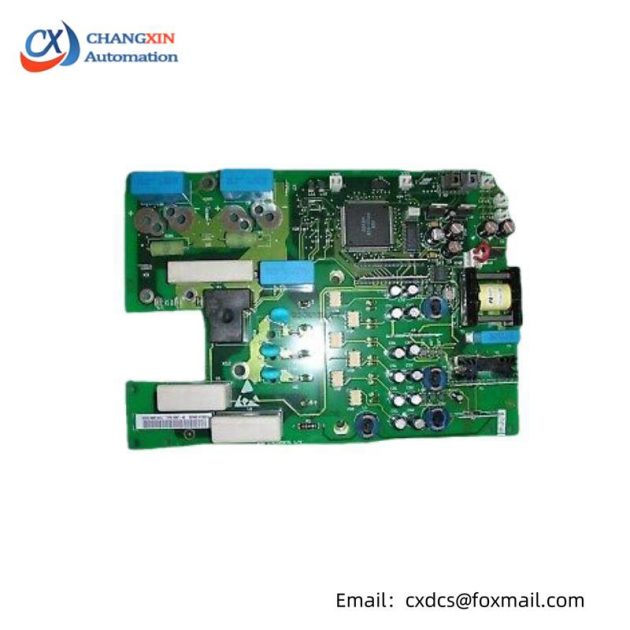

ABB NINT-45C BSM25GD120DN2 IGBT Module – High-Power, Efficient Switching Solutions

Type:IGBT Module

Model Number:NINT-45C BSM25GD120DN2

Maximum Rating Current:120A @ 1700V

Switching Frequency:Up to 50kHz

Cooling Method:Water-cooled

Package Size:25mm x 25mm

Operating Temperature Range:-40°C to +125°C

Insulation Resistance:≥10MΩ at 500VDC

    The ABB NINT-45C BSM25GD120DN2 IGBT module is designed for high-power electronic applications, offering unparalleled reliability and efficiency in industrial processes.

    This robust IGBT module features a high maximum rating current of 120A at 1700V, ensuring it can handle demanding loads while maintaining high performance standards.

    With a switching frequency of up to 50kHz, this module is optimized for rapid and precise control, making it ideal for applications requiring fast response times.

    Utilizing water cooling technology, the module is capable of dissipating heat efficiently, allowing for continuous operation in high-temperature environments without overheating.

    Designed with industrial durability in mind, the ABB NINT-45C BSM25GD120DN2 operates within a wide temperature range from -40°C to +125°C, ensuring its reliability across various operational conditions.
