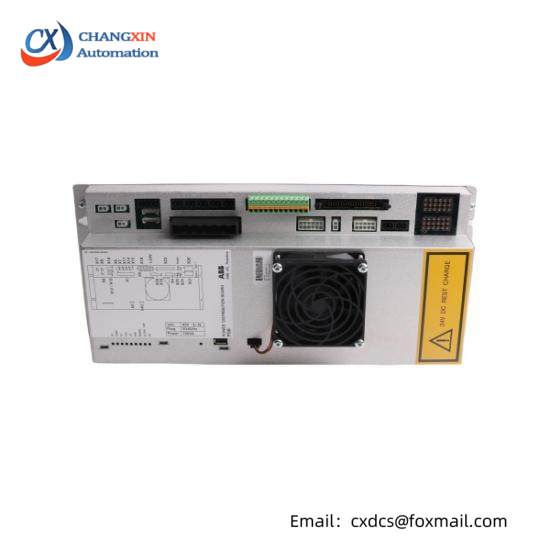

ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module

Model:PDB-02 3HNA023093-001

Type:Thermocouple/mV Input Module

Temperature Range:-200°C to +1600°C

Input Signals:4-wire RTD, Thermocouples (J, K, T, E, J, N, R, S)

Signal Conversion:0 to 10V, 4 to 20mA

Power Consumption:Less than 1W

Operating Voltage:24V DC

Current Consumption:Max 10mA

Operating Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

Enclosure Protection:IP20

Dimensions:100mm x 75mm x 50mm

Weight:0.3kg

    This high-performance thermocouple/mV input module is specifically engineered to meet the stringent requirements of industrial automation environments. It seamlessly integrates with a wide range of control systems, ensuring reliable temperature monitoring across diverse industries.

    Featuring an ultra-wide operating temperature range, this module can withstand harsh conditions, making it suitable for applications in extreme environments. Its low power consumption ensures efficient operation without draining system resources.

    With support for multiple thermocouple types and millivolt signals, the ABB PDB-02 3HNA023093-001 is adaptable to various industrial processes. Its digital output provides accurate and stable data transmission, crucial for real-time process control.

    Equipped with a high-precision accuracy level, this module ensures reliable measurements, minimizing errors in critical temperature-sensitive operations. Its fast sampling rate allows for quick response times, enhancing operational efficiency.

    The inclusion of a relay output provides a safety feature for critical shutdown scenarios or alarms, safeguarding equipment from potential damage due to overheating or undercooling conditions.
