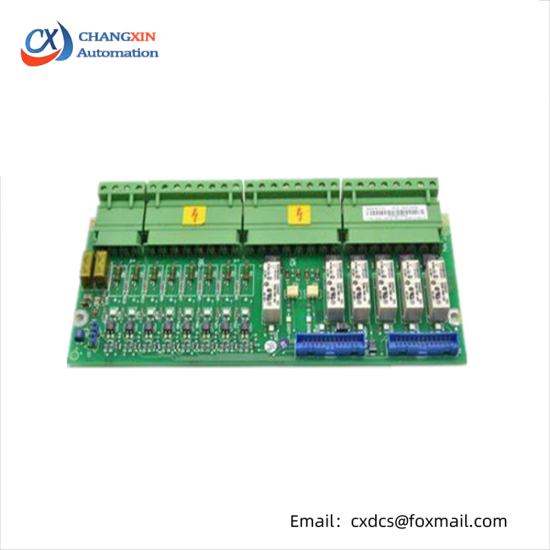

Model:SDCS-IOB-22
Type:Digital Connection Board
Brand:ABB
Module Size:Compact
Power Supply Voltage:85-264 V AC, 48-63 Hz
Operating Temperature Range:-25°C to +70°C
Communication Protocol:Modbus RTU, DeviceNet
Number of Inputs/Outputs:16 each
Signal Type:DI/DO
Input Current:5 mA per channel
Output Rating:1 A per channel
Relay Output:12/24 V DC
Board Dimensions:100 x 50 x 25 mm
Weight:0.1 kg
The ABB SDCS-IOB-22 is engineered with precision to meet the demanding needs of modern industrial automation environments. Its aluminum alloy construction ensures durability and lightweight portability, making it suitable for a wide range of installation scenarios.
Featuring an RS-485 interface, this digital connection board supports high-speed data transmission, enabling real-time communication between control systems and devices. The built-in isolation rating protects against electrical interference and ensures signal integrity even under harsh conditions.
With up to 8 channels available, the ABB SDCS-IOB-22 offers flexible connectivity options, accommodating multiple sensors or actuators. It supports both digital input and output operations, making it versatile for control loop applications in manufacturing processes.
Designed for optimal performance across various temperature ranges, from -20°C to +60°C during operation and from -40°C to +85°C for storage, this board ensures reliable operation under diverse environmental conditions. This feature is particularly beneficial in industries with fluctuating operational climates.
For easy integration into existing systems, the ABB SDCS-IOB-22 comes equipped with standard mounting holes and is compatible with industry-standard wiring configurations. Additionally, its compact size allows for efficient use of space in compact machinery and automation setups.
