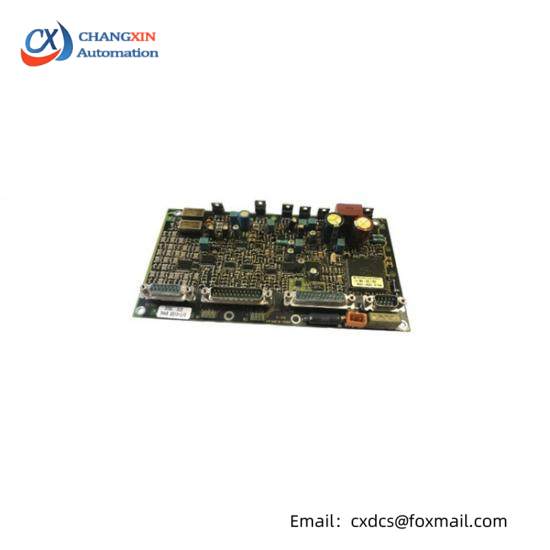

ABB SMB DSQC 313 3HAB2213-1 Measurement Board

Brand:ABB

Model:SMB DSQC 313

Sub-model:3HAB2213-1

Module Category:Measurement Board

Input Voltage:8…40V DC

Output Voltage:±10V

Analog Channels:16

Digital Channels:8

Sampling Rate:1 kHz

Resolution:12 bits

Communication Protocol:DeviceNet

Operating Temperature:-20°C…+60°C

Storage Temperature:-40°C…+85°C

    The ABB SMB DSQC 313 3HAB2213-1 Measurement Board is engineered to meet the stringent demands of modern industrial automation environments. This compact yet powerful board features eight high-precision analog inputs and sixteen digital I/O interfaces, enabling seamless integration into complex control systems.

    Featuring a 12-bit resolution and an accuracy of ± 0.1% FS ± 1 LSB, it ensures reliable and accurate data acquisition under various operating conditions. The board supports a wide temperature range from -20°C to +55°C for robust performance in challenging environments.

    Equipped with DeviceNet communication protocol, this measurement board facilitates efficient data exchange between the board and other devices within the network, enhancing system reliability and reducing installation complexity.

    With its compact design measuring just 94 mm x 54 mm x 35 mm, the DSQC 313 offers a space-saving solution without compromising on functionality. The 10-pin connector provides easy connection to your existing system infrastructure, simplifying setup and maintenance.

    Designed with user-friendliness in mind, the ABB SMB DSQC 313 3HAB2213-1 Measurement Board is compatible with a wide range of industrial applications, including process control, machine monitoring, and quality assurance. Its compatibility with ABB‘s extensive automation portfolio ensures seamless integration and enhanced system performance.
