Model Number:SMB3HAC042285-001
Manufacturer:ABB
Type:Serial Measurement Board
Measurement Resolution:0.1 μA
Sampling Rate:Up to 100 kSPS
Operating Temperature Range:-25°C to +85°C
Power Consumption:Max 2.5 W
Connectivity:RS-485, Modbus RTU
Dimensions:100mm x 44mm x 25mm
Weight:50g
Compatibility:ABB Control Panels

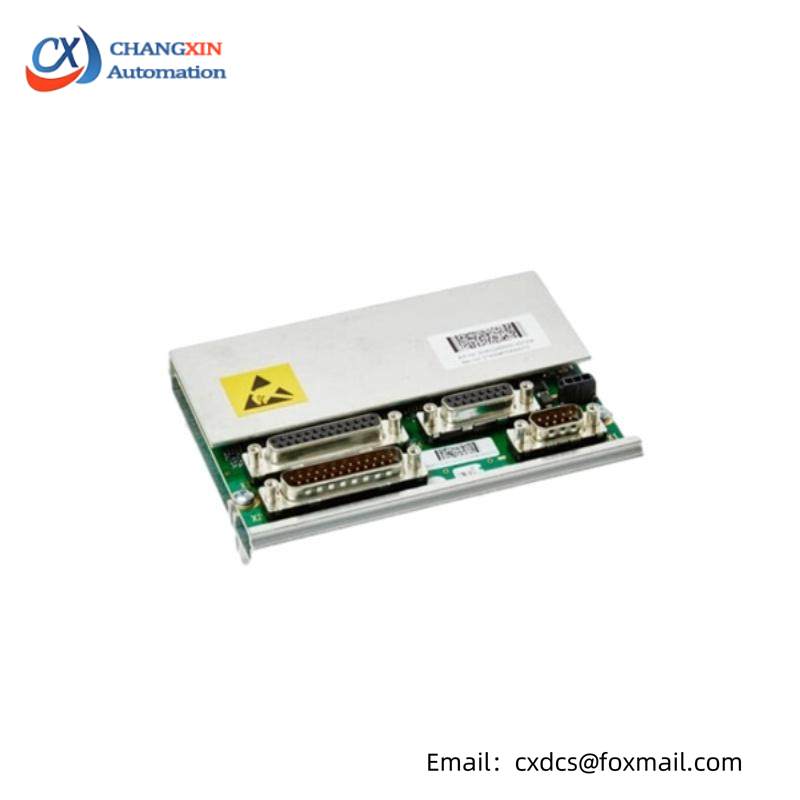

The ABB SMB3HAC042285-001 Serial Measurement Board is engineered for applications requiring high-precision data collection, ensuring reliable operation in harsh industrial environments. This board features an advanced signal processing unit that enhances measurement accuracy to within +/- 0.02% of full scale, making it ideal for demanding control systems where precision is paramount.
With an operating temperature range from -20°C to +70°C and a storage capacity from -40°C to +85°C, the SMB3HAC042285-001 is designed to withstand extreme environmental conditions without compromising performance. Its robust design ensures durability and longevity in various industrial settings.
Equipped with a versatile RS-485 communication interface, this measurement board seamlessly integrates with existing automation systems, enabling seamless data exchange between different components. The board supports both 0 to 10V DC and 4 to 20mA input ranges, providing flexibility for a wide array of sensor connections.
The compact size of 120mm x 100mm x 35mm, combined with its lightweight design, makes installation straightforward and space-efficient. The M12 connector system ensures secure and reliable connections, further enhancing the board’s practicality in various industrial installations.
Designed with user convenience in mind, the ABB SMB3HAC042285-001 includes comprehensive documentation and technical support to facilitate quick setup and integration. It’s an essential component for achieving optimal performance in industrial control systems, offering a balance between precision, reliability, and ease of use.
