Number of Channels:16
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range for Voltage:-10 To 10 VDC – 1 LSB
Current Rating for Backplane:55 MA
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Rating:Backplane: 2.425 W
Enclosure Type:Open Type

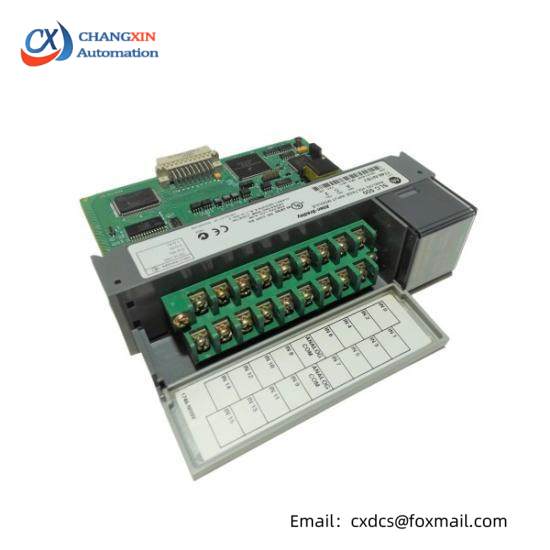

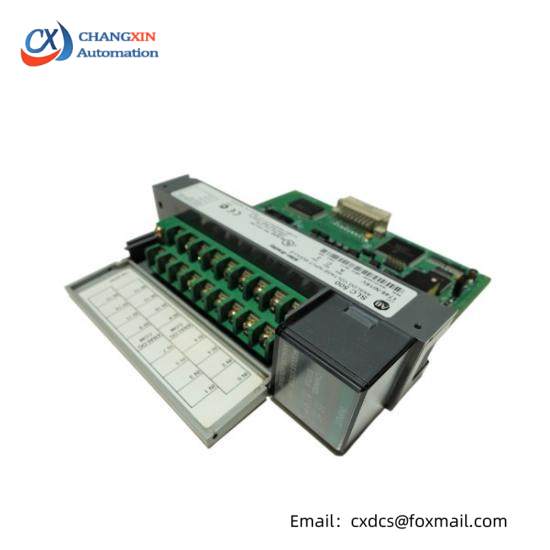

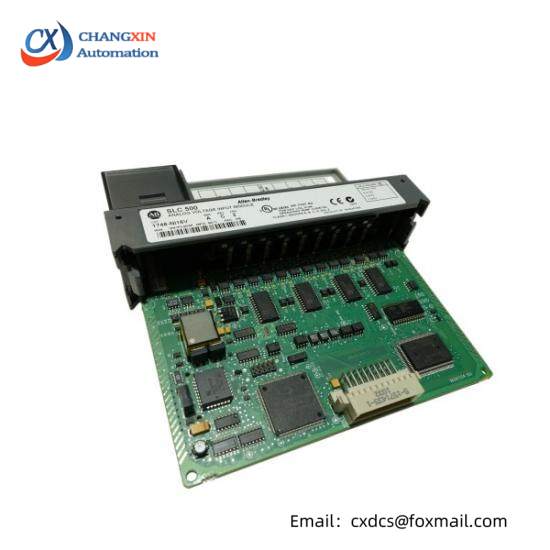

The Allen Bradley 1746-NI16V High Resolution Analog Input Module is engineered to deliver unparalleled accuracy and reliability in industrial automation systems.
With 16 channels for simultaneous signal acquisition, this module ensures efficient data processing in complex machinery and processes.
Designed for high-resolution applications, it supports a wide range of input voltages and currents, making it versatile for various industrial settings.
Equipped with robust overvoltage protection, the 1746-NI16V ensures stable operation even under fluctuating power conditions, enhancing system uptime and reliability.
Featuring an open-type enclosure, this module facilitates easy integration and installation within existing industrial control systems, minimizing downtime and maximizing productivity.
Compliant with industry standards and regulations, the Allen Bradley 1746-NI16V is a trusted choice for engineers and manufacturers seeking precision and durability in their automation solutions.
