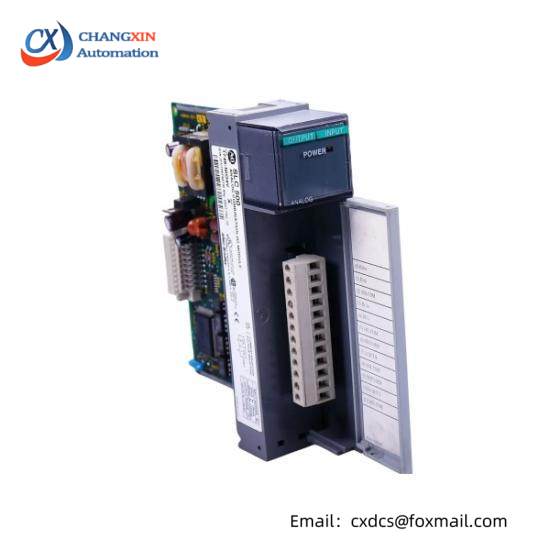

Allen Bradley 1746-NIO4V – SLC 500 Analog Combination Module

Number of Channels:2 Input & 2 Output

Common Mode Voltage Range (Input):-20 To 20 V

Absolute Input Voltage (Input):+/- 7.5 VDC or 7.5 VAC RMS

Input Range (Input):-20 To 20 MA

Absolute Input Current (Input):-30 To 30 MA

Output Range (Output):-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (Output):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 55 MA

    The AB 1746-NIO4V Analog Module is engineered for seamless integration into SLC 500 programmable logic controller systems, providing superior performance in data acquisition and control tasks.

    Featuring a compact design, this module ensures efficient use of space within industrial control panels, enhancing system scalability and flexibility.

    With its robust construction and wide temperature and humidity tolerance, it ensures reliable operation in harsh industrial environments, offering a long service life and minimizing downtime.

    Supports a variety of industrial protocols for easy communication with other devices, facilitating a comprehensive and interconnected control system.

    Compliant with international safety standards, ensuring a safe and secure operation environment, this module adheres to the latest industry regulations and guidelines.
