Module Type:Digital DC Sinking Output
Number of Outputs:32 Channels
Nominal Output Voltage:24 VDC
Output Voltage Range:5-50 VDC
Backplane Current:0.190 A
Weight:0.3 kg
Enclosure Type:Open Type
Mounting Method:Chassis
Temperature Rating:0-60°C
Environmental Conditions:5-95% RH
Overvoltage Protection:7.5 VAC RMS
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Absolute Input Current:-30 to +30 mA (Max.)
Input Range:-20 to +20 mA
Common Mode Voltage Range:-20 to +20 V

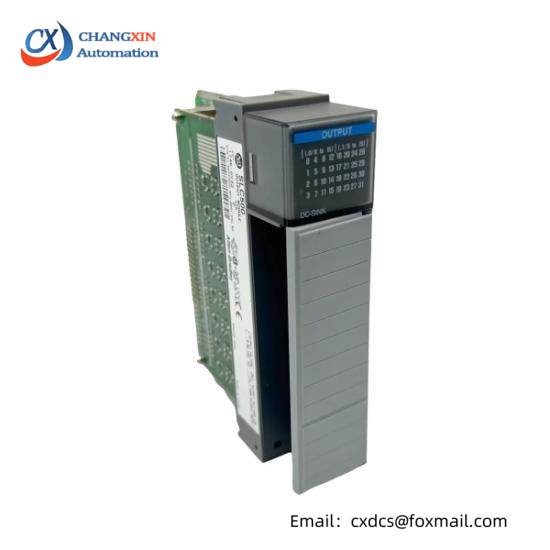

The 1746-OV32 Output Module is a core component in Rockwell Automation’s SLC 500 series, offering seamless integration with PLC systems to manage up to 32 digital outputs. Its robust design ensures reliability in harsh industrial conditions.
Equipped with advanced switching technology, this module provides precise control over actuators, motors, and other equipment, enabling precise operation and energy efficiency. It supports a wide range of power supply voltages, making it adaptable to various industrial settings.
With its RS-485 interface, the 1746-OV32 facilitates communication between the PLC and other devices within the network, enhancing system scalability and flexibility. The inclusion of SPDT relay contacts ensures a high level of reliability and durability.
Operating within a temperature range from -40°C to +60°C, this module is ideal for use in extreme environments, from cold storage facilities to hot manufacturing floors. Its compact size and lightweight design make installation and maintenance straightforward.
Comprehensive documentation and support resources are available for the 1746-OV32, ensuring users can quickly understand and implement its capabilities. Whether upgrading existing systems or designing new ones, this module is an essential tool for enhancing industrial control and automation processes.
