Model Type:Analog Input Module
Manufacturer:Allen Bradley
Model Number:1746sc-INI4vi
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC Or 7.5 VAC RMS (Max)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Max)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%

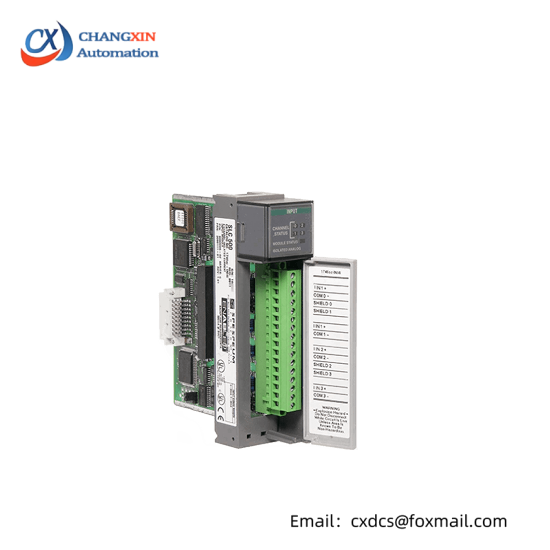

The Allen Bradley 1746sc-INI4vi is engineered for high accuracy and reliability in demanding industrial settings. With its advanced design, this module ensures seamless integration into complex automation systems, offering precise signal acquisition capabilities.
Equipped with a wide common mode voltage range, this module can handle a variety of industrial signals, ensuring compatibility with diverse equipment and processes. Its high-resolution inputs enable detailed monitoring of critical parameters, enhancing operational efficiency.
Featuring robust isolation measures, the 1746sc-INI4vi safeguards against electrical interference, maintaining signal integrity under varying environmental conditions. This is particularly crucial in environments with high electromagnetic noise.
The module’s compact design allows for easy installation within tight spaces, optimizing panel layouts for efficient use of resources. It is compatible with a wide range of Allen Bradley SLC 500 series controllers, expanding the scope of its application.
Designed for long-term reliability, the Allen Bradley 1746sc-INI4vi is built to withstand harsh industrial conditions. It supports continuous operation in temperatures ranging from 0 to 60 degrees Celsius, ensuring stable performance throughout the year.
