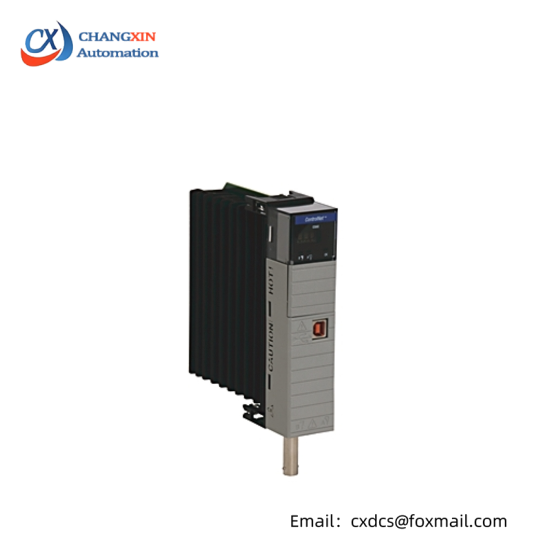

Allen-Bradley 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Model Number:1756-CN2R/C

Manufacturer:Allen-Bradley

Number Of Channels:2

Current Rating:Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

ControlNet Connectivity:A/B To Backplane, And ControlNet A To Controlnet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ

Conducted:10 VRMS With 1 KHZ Sine-Wave 80% AM From 150 KHZ – 80 MHZ

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Communication Protocol:ControlNet

Connection Cables:Ethernet, USB Port

Mounting:Chassis

Power Supply:3 MA At 24 VDC

    The Allen-Bradley 1756-CN2R/C ControlNet Redundant Bridge Module is engineered for demanding industrial environments where reliability is paramount. Its robust design ensures seamless integration with ControlLogix systems, offering enhanced data transmission capabilities between ControlNet networks.

    This module supports dual redundant connections, ensuring uninterrupted operation even in case of failures, thus maximizing system uptime and operational efficiency.

    With its high current rating and efficient power management, the 1756-CN2R/C can handle heavy traffic loads without compromising performance or stability.

    Featuring advanced RFI suppression technologies, it safeguards against electromagnetic interference, maintaining optimal signal quality across various operational conditions.

    The open type enclosure allows for easy installation and maintenance, making it suitable for a wide range of industrial settings. Furthermore, its compatibility with Ethernet, USB ports, and control protocols ensures versatile connectivity options, streamlining network integration.

    Whether you’re enhancing existing automation systems or designing new ones, the Allen-Bradley 1756-CN2R/C ControlNet Redundant Bridge Module is the ideal choice for achieving unparalleled performance, reliability, and efficiency in your industrial operations.
