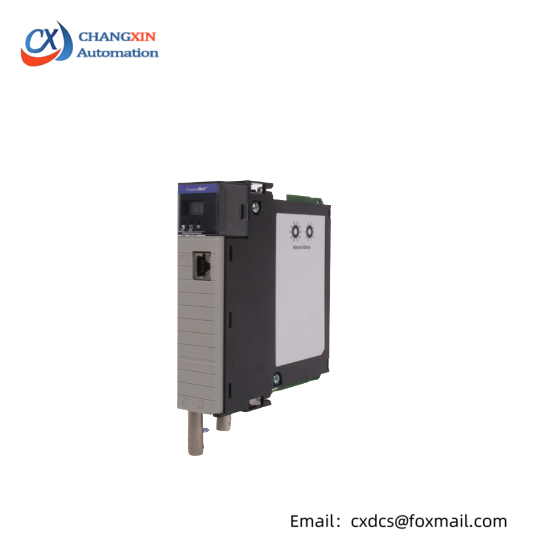

Model Type:Redundant Bridge Module
Manufacturer:Allen-Bradley
Model Number:1756-CNBR/D
Number of Channels:2
Current Rating (Drawn):970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation:30 V (Continuous)
Enclosure Type:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000 – 2700 MHz; Conducted: 10 VRMS with 1 KHz sine-wave 80% AM from 150 KHZ – 80 MHz
Temperature Range:Not specified
The Allen-Bradley 1756-CNBR/D module is a robust solution for enhancing network reliability in industrial automation systems. Its high-speed communication rate ensures efficient data transfer, making it ideal for applications requiring real-time performance and responsiveness.
Featuring a versatile connection capacity, this module supports both scheduled and unscheduled connections, allowing for flexible integration with various devices within the ControlNet network. Its compatibility with ControlLogix controllers ensures seamless operation and streamlined system integration.
With its built-in redundancy feature, the 1756-CNBR/D module provides an additional layer of security against network disruptions. In the event of a primary connection failure, the redundant path ensures continuous operation without any downtime, maintaining system stability and productivity.
The module operates on a wide range of power supplies, from 12 to 48 V DC, ensuring compatibility with diverse industrial power environments. This flexibility makes it suitable for a broad spectrum of applications across different industries.
Ease of installation and configuration, combined with its durable design, make the Allen-Bradley 1756-CNBR/D ControlNet Redundant Bridge Module an indispensable component for enhancing the reliability and efficiency of industrial networks. It’s engineered to withstand harsh industrial conditions, ensuring long-term performance and minimal maintenance requirements.
