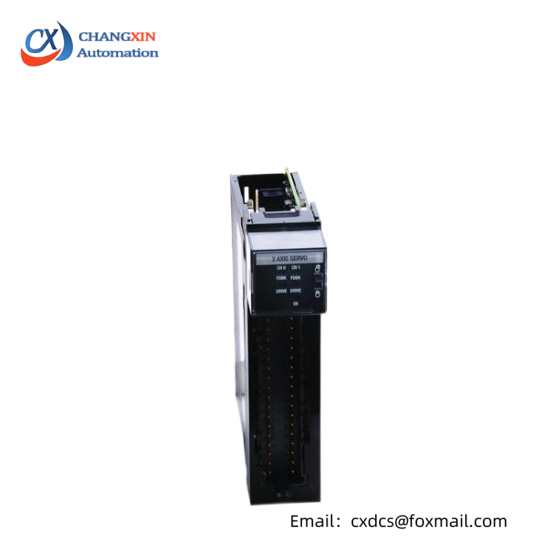

Allen-Bradley 1756-M02AE ControlLogix Servo Drive Module

Model Type:Servo Drive Module

Manufacturer:Allen-Bradley

Model Number:1756-M02AE

Core Function:High-performance motor control

Application Area:Industrial automation

Power Supply Voltage:200 VAC

Rated Current:3 A

Maximum Rotational Speed:6000 rpm

Maximum Current:9 A

Dimension (D x H x W):297.18 x 35.56 x 175.26 mm

Weight:0.6 kg

Isolation Level:30 V (Continuous)

    Engineered for precision motion control, the Allen-Bradley 1756-M02AE ControlLogix Servo Module is a cornerstone in industrial automation systems, designed to deliver exceptional performance and reliability in demanding applications.

    This module supports a wide range of encoder compatibility options, including both absolute and incremental encoders, ensuring seamless integration with various motion control scenarios.

    Featuring a robust open type enclosure and IP20 protection class, it withstands harsh industrial environments, guaranteeing uninterrupted operation in manufacturing floors.

    With a power supply voltage of 24 VDC and a maximum current rating of 1.5 A, the 1756-M02AE ensures stable power delivery, critical for maintaining precise motion control.

    Equipped with advanced communication interfaces, this module seamlessly integrates into the ControlLogix network, enhancing system efficiency and providing real-time access to critical operational data.

    The 1 arc-minute rotational resolution delivers unparalleled precision, enabling accurate positioning and movement control, essential for high-accuracy processes.
