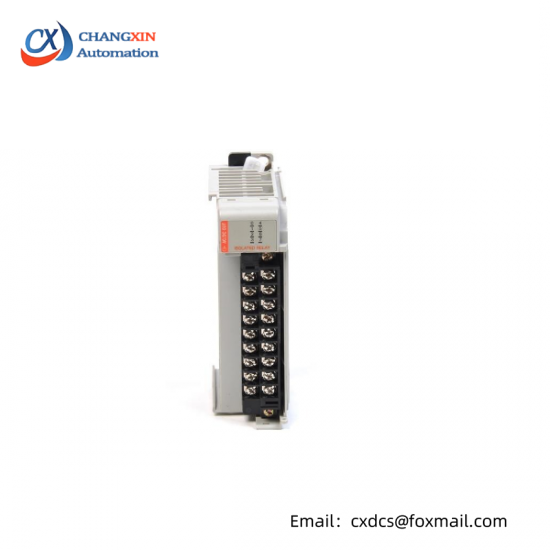

Allen-Bradley 1769-OW8I CompactLogix Relay Output Module

Module Type:Relay Output

Model Number:1769-OW8I

Compatible Controllers:CompactLogix and MicroLogix 1500 LRP Controllers (excluding certain models)

Ethernet Technology:Modbus TCP/IP Server and Client protocol support

Input Voltage Range:19.2-31.2VDC

Nominal Voltage:24VDC

Power Consumption:≤100VA at 24V DC

Fuse Type:Wickmann 19193-6.3A and Littelfuse 021706.3MXP

Mounting Options:Panel or DIN Rail

Dimensions:118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)

Weight:630 g (1.39 lb)

    The Allen-Bradley 1769-OW8I CompactLogix Relay Output Module is engineered to provide precise control over relay outputs in complex industrial automation environments, ensuring smooth operation across various machinery and equipment.

    This module is part of the CompactLogix series, known for its compact design and high efficiency, making it ideal for space-constrained applications without compromising on functionality.

    With a total of 8 single-pole, single-throw (SPDT) relays, the 1769-OW8I offers versatile control options, supporting a wide range of switching tasks in different industrial processes.

    Featuring spring-loaded terminal connections, the module ensures secure and reliable wiring, simplifying installation and maintenance procedures for end-users.

    Equipped with a power consumption of 100 VA at 24 VDC, the module efficiently manages energy usage, contributing to the overall cost-effectiveness of the automation system.

    Designed for easy integration, the module can be mounted either on the panel or on a DIN rail, providing flexibility in installation scenarios.

    The 1769-OW8I operates within a temperature range of -20°C to +60°C, ensuring robust performance under varying environmental conditions, while its IP20 enclosure rating protects against dust and limited water splashes.
