Model:2098-DSD-020X
Brand:Allen-Bradley
Weight:2.1 kg (4.6 lbs)
Dimensions:98.1mm x 32.77mm x 65.02mm
Input Voltage (AC):100-240VAC rms, 1-Phase
Nominal Input Current:18 A, RMS
Output Voltage (AC):100-240VAC
Frequency Range:0-400 Hz
Continuous Output Power:1kW
Continuous Output Current:1A
Intermittent Output Current:30A
Power:1.0 kW
Bus Capacitance Rating:1880 µF
Bus Overvoltage:400 Vdc
Energy Absorption Capability:125 Joules @ 115VAC, 51 Joules @ 230VAC input

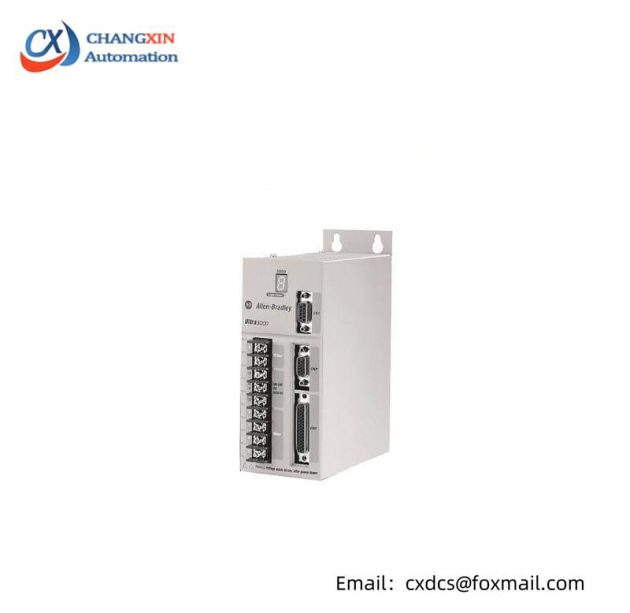

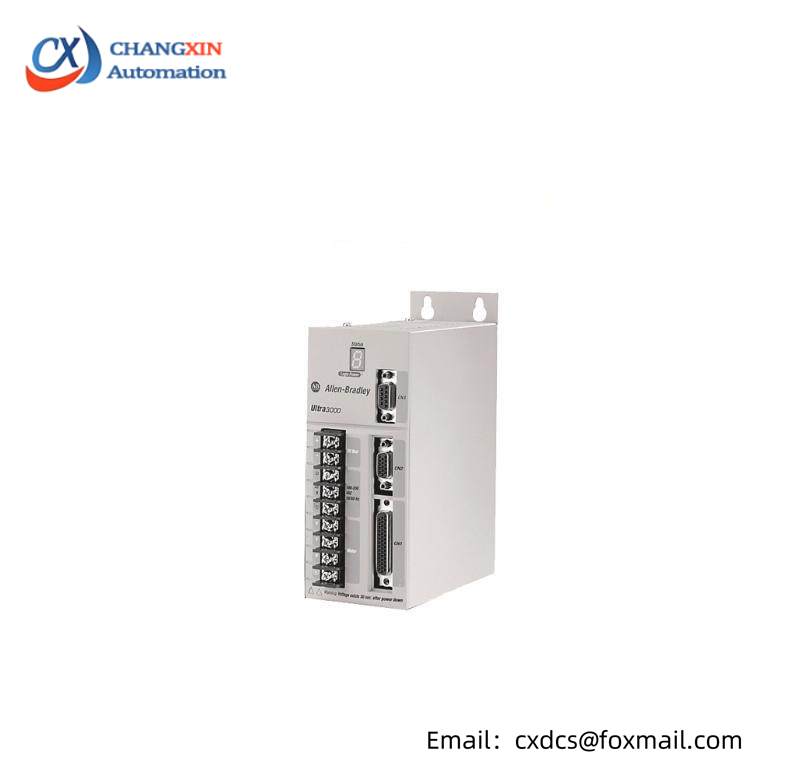

The Allen-Bradley 2098-DSD-020X is an advanced digital servo drive designed for applications requiring precise and reliable motion control. Its compact design and robust performance make it suitable for a wide range of industrial settings.
Featuring an input voltage range of 100-240VAC and a frequency of 47-63 Hz, this drive is compatible with various power sources and operates efficiently in different environments. It delivers a continuous output power of 1kW, ensuring high-performance operation under demanding conditions.
Equipped with a nominal input current requirement of 18 A, RMS, and supporting a series of fuse types including FNQ-R-20 Class CC and LPJ-20SP Class J, the 2098-DSD-020X ensures safety and reliability during operation.
With a bus overvoltage capability of 400 Vdc, the drive is designed to withstand transient voltage spikes without compromising performance. It also boasts an energy absorption capacity of 125 Joules at 115VAC and 51 Joules at 230VAC input, providing protection against sudden power surges.
This servo drive is specifically engineered to interface seamlessly with servo motors, such as those from the Allen-Bradley Kinetix series, enhancing efficiency and accuracy in motion control tasks. It supports advanced indexing capabilities, enabling the storage of pre-configured motor movements in its memory for quick selection based on specific load requirements.
