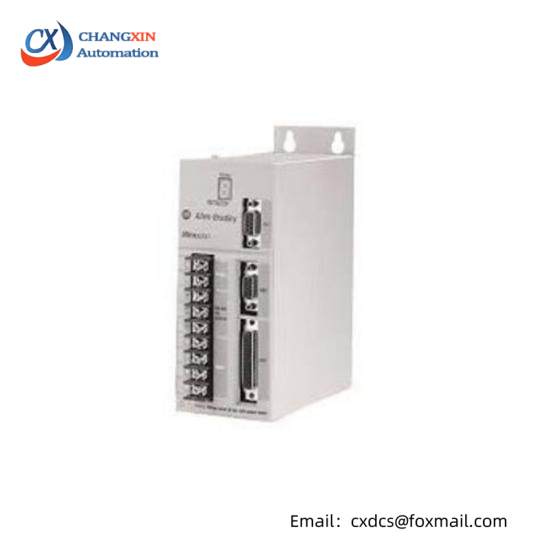

Allen-Bradley 2098-DSD-HV030-SE AC Drive

Input Voltage (AC):230 – 480 V rms, 3 phases

Input Frequency (AC):47 – 63 Hz

Nominal Input Current (AC):4 A

Output Voltage (AC):230 VAC / 460 VAC, 3 phases

Programmable Frequency Range:0-400 Hz

Maximum Continuous Output Current:7 A

Maximum Peak Output Current:14 A

Shunt Resistance:120 ohms

Shunt On Rating:800 V DC

    The Allen-Bradley 2098-DSD-HV030-SE AC Drive is designed for advanced control systems, ensuring smooth operation across diverse industrial environments. It supports both CompactLogix and ControlLogix controllers, facilitating remote configuration and monitoring.

    This servo drive offers unparalleled reliability, thanks to its robust design and comprehensive protection features. Its compact size allows for easy integration into existing setups, maximizing space efficiency.

    With a programmable frequency range of 0-400 Hz, users can tailor the performance of their systems to meet specific requirements, enhancing productivity and efficiency. The adjustable output voltage caters to a wide range of applications, from light-duty tasks to more demanding scenarios.

    The AC Drive comes equipped with a shunt resistance of 120 ohms and a shunt on rating of 800 V DC, providing enhanced stability and safety during operation. This feature ensures optimal performance under varying load conditions, making it suitable for a broad spectrum of industrial uses.

    For maintenance and customization, the 2098-DSD-HV030-SE includes versatile connection options, including support for DeviceNet as the interface medium. This compatibility simplifies integration with other components of the automation system, streamlining the setup process.
