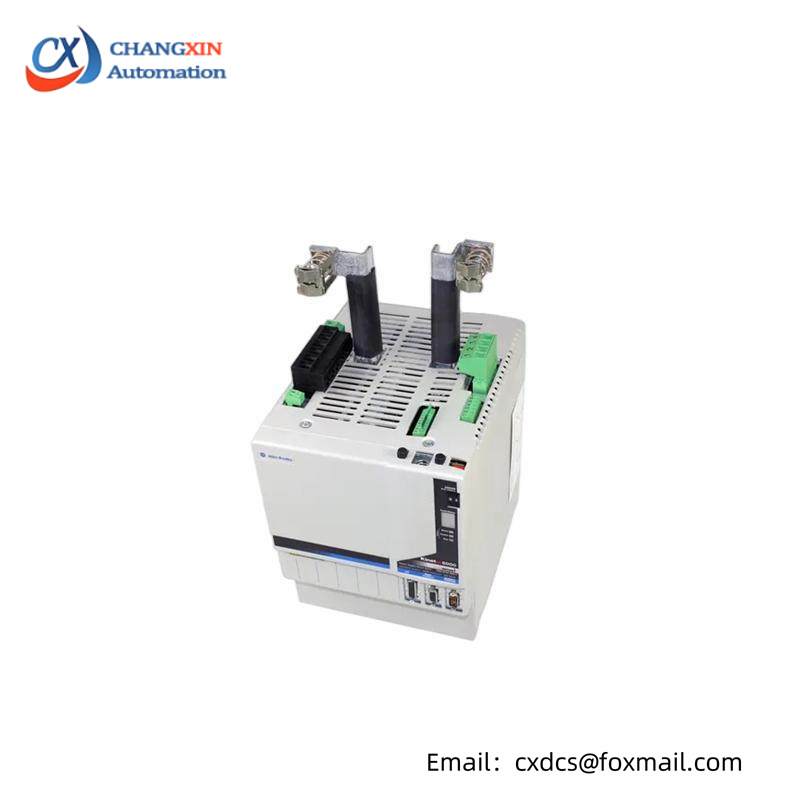

Allen-Bradley Kinetix 6000 2094-BC04-M03-S Integrated Axis Module

Product Family:Kinetix 6000

Module Type:Integrated Axis Module

Model Number:2094-BC04-M03-S

Operating Voltage:360-480V nominal

RMS Voltage Range:324…528V

Input Frequency:470-63Hz

Connector Count:Various

SERCOS Connectivity:Near Bottom

DPI Connectivity:Near Bottom

Operating Temperature:0…50 °C (32…122 °F)

Relative Humidity:5…95% noncondensing

Altitude Range:Similar to other Kinetix module

Vibration Rating:5…55 Hz @ 0.35 mm (0.014 in.) double amplitude

Derating:While operating at 1000 m (3281 ft) and 3000 m (9843 ft)

    Engineered for high performance and reliability, the Allen-Bradley 2094-BC04-M03-S Integrated Axis Module is a pivotal piece in the Kinetix 6000 product family, enhancing efficiency in industrial automation systems.

    This module seamlessly integrates with the power rail, providing a wide range of connectivity options including Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, and more.

    Featuring a robust design, the module supports an extensive input voltage range, ensuring compatibility across various industrial applications.

    Equipped with Safe Torque-off functionality, this module ensures safety and compliance in critical operations, reducing the risk of accidents and downtime.

    Available in three series—standard overload support in Series A, and enhanced options in Series B and C—this product offers versatility to meet diverse industrial needs.
