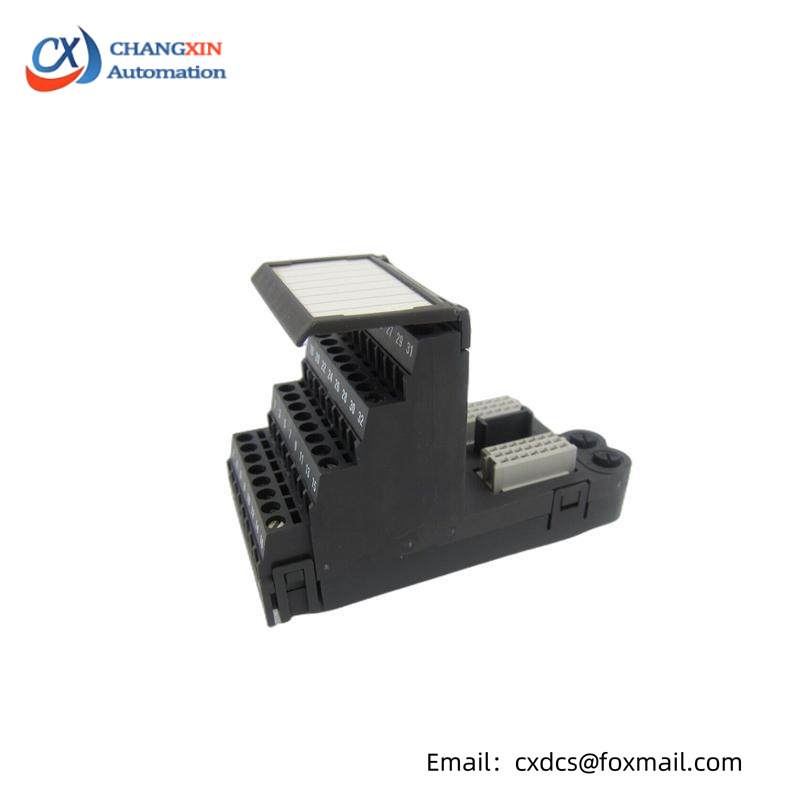

Emerson KJ4001X1-CH1: Advanced RTD Terminal Block, Precision Control for Industry 4.0 Applications

Module Type:RTD Terminal Block

Brand:Emerson

Model:KJ4001X1-CH1

Series:DeltaV

Material:Corrosion-resistant stainless steel

Temperature Range:-20°C to +125°C

Operating Voltage:24 VDC

Input Current:Up to 2 A

Relay Output:1 SPDT contact rated at 24 VDC, 3A

Protection Class:IP67

Mounting Style:Panel mount

Dimensions:74mm x 30mm x 35mm

Weight:0.1kg

    The Emerson KJ4001X1-CH1 terminal block is meticulously designed for high-precision temperature measurement in demanding industrial environments. Its compact yet robust construction ensures reliability under extreme conditions.

    Equipped with a high-grade brass alloy body, this terminal block offers exceptional durability and resistance against corrosion, ensuring longevity and maintenance-free operation over extended periods.

    Featuring an input resistance of 100 ohms with ±10% tolerance, it ensures accurate temperature readings across a wide range from -40°C to +125°C (-40°F to +257°F), making it suitable for various industrial applications.

    Precision-engineered for accuracy, the terminal block delivers ±0.1% of full scale accuracy, critical for applications requiring high precision in temperature control and monitoring.

    Operates efficiently on 24 VDC, supporting a maximum current of 1A, which meets the power requirements of most industrial systems while minimizing energy consumption.

    For easy and secure connections, the terminal block utilizes screw terminals with a spring clamp mechanism, ensuring stable and reliable connections without the need for additional tools.
