Manufacturer:General Electric
Series:Mark V
Part Number:DS200KLDCG1AAA
Functional Description:LED/Key/Display Board
Coating:Normal Coating
Revisions:3
Backwards Compatibility:First two revisions
Assembly Type:Normal Assembly
Number of LEDs:32
Number of Displays:21 (4-character)
Jumper Switches:1
Connection Strip:40-pin on rear
Excess Voltage Limiting Components:Available
Display Type:Numerical (16-segment digits)
Board Markings:C-ESS, 6BA01
Drilled Corners and Edges:Yes

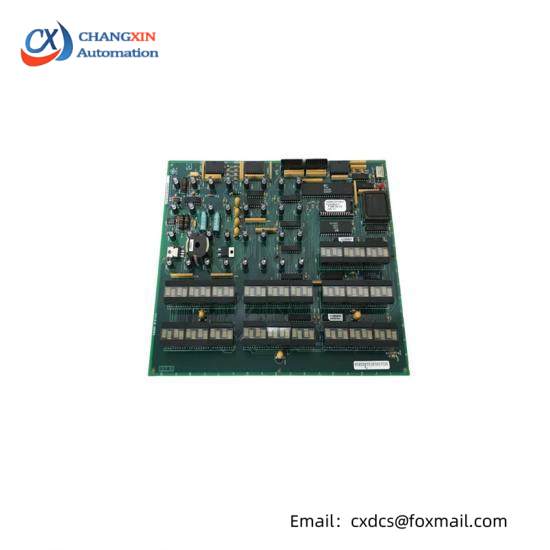

The GE-FANUC DS200KLDCG1AAA LED Display Board is an essential component for industrial control systems, offering a user-friendly interface through its integrated LED display and character displays. It is engineered with precision to handle critical data display tasks, ensuring smooth operation in demanding environments.
This board supports up to 32 LEDs, each capable of displaying four-character alphanumeric information, facilitating clear and concise communication of operational statuses. The inclusion of 21 four-character displays allows for comprehensive information presentation, enhancing efficiency and productivity.
The modular design of the DS200KLDCG1AAA includes a versatile 40-pin connector strip on the rear, providing flexibility in integration with various control systems. Additionally, it features two jumper switches that enable users to customize the board’s functionality according to specific application requirements.
Composed of high-quality materials, the board ensures durability and reliability in harsh industrial settings. Its robust construction withstands the test of time, guaranteeing consistent performance throughout its lifecycle.
For optimal performance, it is recommended to pair the DS200KLDCG1AAA LED Display Board with compatible control units and accessories from GE-FANUC. Detailed installation instructions and compatibility guides are available upon request, ensuring seamless integration into existing or new industrial control setups.
