Manufacturer:General Electric
Model Number:DS3820AIPA
Application Type:Analog Input/Output
Module Type:I/O
Board Type:DS3800 Series
Input Voltage Range:9 to 32V DC
Operating Temperature:-40°C to +70°C
Diode Count:Approximately 70
Resistor Count:Approximately 100
Power Consumption:1.5W
Weight:0.5kg
Connector Type:DB9
Communication Interface:RS-232

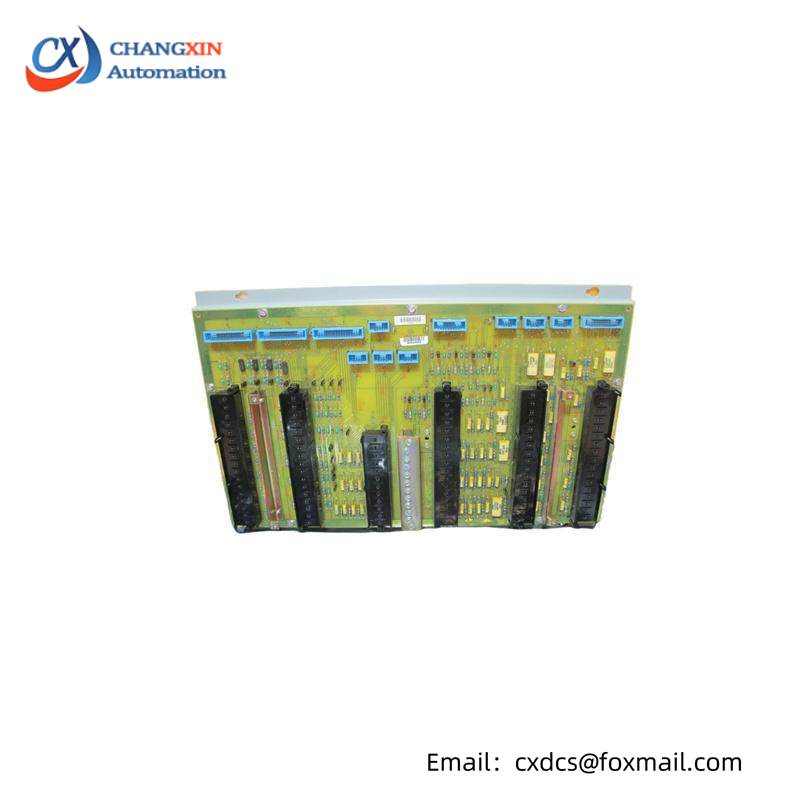

The GE DS3820AIPA ANALOG I/O MODULE is an essential component for enhancing the performance of industrial control systems. It features a high density of teal diodes and resistors, meticulously arranged for optimal energy management in circuitry.
Engineered for durability, this module withstands the rigors of industrial environments, ensuring stable operation under varying conditions. Its unidirectional energy flow through the diodes guarantees precise signal transmission.
With a broad array of resistors color-coded for easy identification of their respective values, technicians can quickly understand and configure the module according to specific application requirements.
While the exact dimensions and weight are not explicitly detailed in the provided information, the DS3820AIPA is designed to integrate seamlessly into existing systems without compromising space or adding unnecessary bulk.
For comprehensive guidance on installation and safety measures, it’s recommended to consult the original manufacturer’s manual. AX Control supports users in accessing and understanding the necessary documentation for proper handling and integration.
