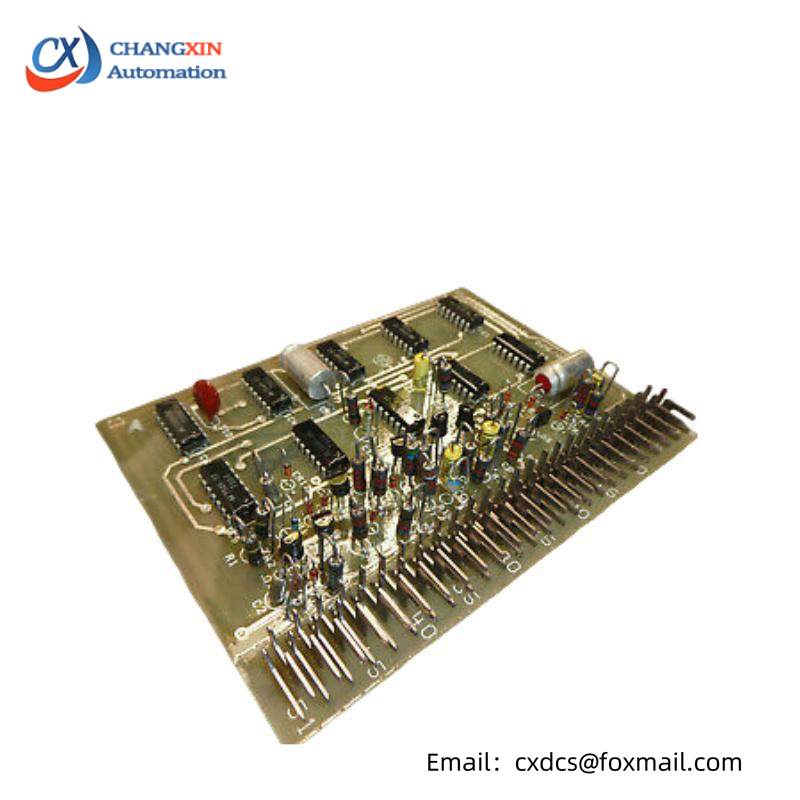

Type:Annunciator Control Board
Manufacturer:General Electric (GE)
Model:IC3600VANB1D
Compatible Systems:Mark I or Mark II Speedtronic series
Application:Steam and gas turbine systems
Supported Power Range:From small single stations to complete power plants (up to 400 MW)
Technology:Integrated circuit board with microprocessors, relays, switches, and indicators
Power Supply:DC voltage
Dimensions:L x W x H (mm): 178 x 105 x 30
Weight:Approximately 0.5 kg
Certifications:UL, CE
Environment:Industrial, harsh conditions
Operating Temperature:-20°C to +50°C
Storage Temperature:-30°C to +70°C
The GE IC3600VANB1D is a testament to GE‘s commitment to engineering reliability and scalability in turbine management systems. It is specifically designed for the Mark I and Mark II Speedtronic series, providing critical control functions for steam and gas turbines.
Equipped with high-quality components including aluminum electrolytic capacitors, metal film resistors, and diodes, this board ensures stable and efficient operation under various environmental conditions typically found in industrial settings.
With its vertical mounting of most components and clear designations, the IC3600VANB1D is not only functional but also user-friendly, facilitating ease of installation and maintenance.
Despite being considered technologically obsolete by some standards, the IC3600VANB1D continues to serve as a reliable solution for power generation facilities that have invested in these systems. Its legacy speaks to the enduring quality and adaptability of GE‘s early turbine management solutions.
For optimal performance and safety, it is recommended to consult the retained manuals or data sheets for detailed installation and operational guidelines.
