Manufacturer:General Electric (GE)
Model Number:IS200EGPAG1BCA
Series:EX2100
Product Type:Gate Pulse Amplifier Module
Function:Controls the power bridge and manages the SCR conduction feedback
On-board Components:On-board green and red LED indicators
Weight:1lbs 9oz
Dimensions:Not specified in the document, please refer to the original manual for detailed dimensions
Functionality:Interface for conduction feedback along with airflow and temperature monitoring

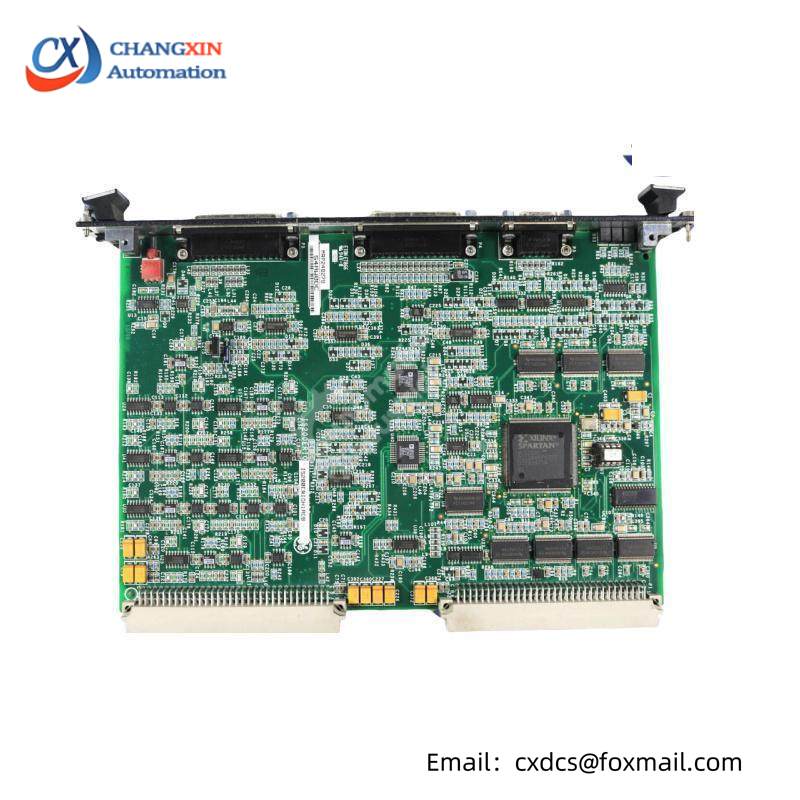

The IS200EGPAG1BCA is a high-performance Gate Pulse Amplifier meticulously designed by General Electric for the EX2100 Excitation Control Series. This amplifier plays a crucial role in controlling power bridges and ensuring the precise regulation of Silicon Controlled Rectifiers (SCRs). With on-board green and red LED indicators, it provides clear status updates, making it easy to monitor operational conditions.
Designed with robust hardware, this amplifier offers superior reliability and durability, making it an ideal choice for industrial environments where consistent performance is critical. The inclusion of three significant product revisions enhances its functionality and compatibility with existing systems.
The amplifier’s ability to provide conduction feedback, along with monitoring airflow and temperature, ensures optimal system performance and longevity. Its configurable hardware with five on-board jumpers allows for customization to meet specific application needs.
Built to withstand demanding industrial settings, the IS200EGPAG1BCA is engineered to deliver dependable operation over extended periods. Whether you’re working with excitation control systems or other industrial applications requiring precise pulse amplification, this amplifier delivers the performance you need.
For more detailed technical specifications and installation instructions, please consult the provided instruction manual or contact AX Control for any additional support or surplus availability inquiries.
