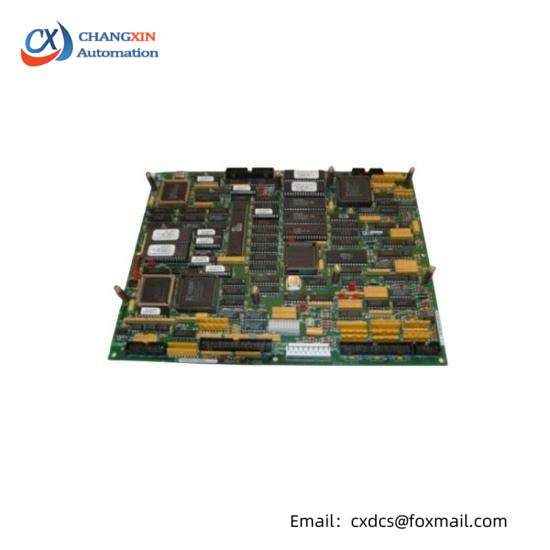

GE VSV0 H1B IS200VSVOH1BED Control Board: A High-Performance Solution for Industrial Control Systems

Manufacturer:General Electric

Model Number:IS200VSVOH1BED

Functional Acronym:VSVO

Functional Description:VME Servo Board

Functional Revision:1B

PCB Coating:Conformal Coating

Artwork Revision😀

Series:Mark VI Speedtronic

Part Number:IS200VSVOH1BED

Number of Connectors:6

Backplane Connections:2

Conductive Traces:4 (P3-P6)

Relays:4 (K1-K4)

Test Points:TP

Inductor Beads:L1-L10

Integrated Circuits:Over 70

    The GE VSV0 H1B IS200VSVOH1BED Control Board is meticulously designed for high-end industrial applications, ensuring unparalleled control and efficiency in complex machinery operations.

    This module boasts an advanced VME (VMEbus) architecture, providing superior data processing capabilities and enhanced communication within industrial automation systems.

    Equipped with conformal coating, the board withstands harsh environmental conditions, ensuring reliable performance even in extreme climates.

    The inclusion of four relays (K1-K4) allows for precise control over electrical circuits, enabling smooth operation and improved safety measures in critical industrial processes.

    With over seventy integrated circuits, the IS200VSVOH1BED Control Board offers extensive functionality, supporting a wide array of control tasks in diverse industrial settings.

    For optimal performance, we recommend pairing the IS200VSVOH1BED Control Board with our comprehensive range of GE VMEbus accessories, ensuring seamless integration into your existing industrial system.
