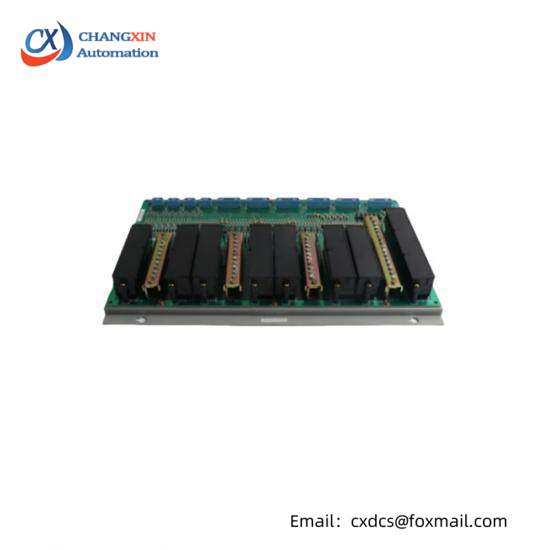

Model:DS3800XAIB1E1E
Manufacturer:General Electric
Type:Circuit Board
Series:Mark IV DS3800
Connector Ports:Two parallel lines of eight each
Additional Test Points:Ten situated between the connector ports
Screw Mounting Places:Twelve
Red LEDs:Over thirty-five
Connection Points for Wiring Harnesses:Nine separate
Compatible with Female Harness:Yes
The GE DS3800XAIB1E1E Circuit Board is meticulously engineered to withstand the rigorous demands of industrial environments. Its robust design features a combination of large, durable components and precision-engineered smaller parts, ensuring optimal performance and longevity.
With its extensive range of test points and connector ports, the board facilitates easy integration and customization, making it suitable for complex control systems. The inclusion of various resistors, capacitors, and diodes allows for fine-tuning to meet specific operational requirements.
Crafted from high-quality materials including black plastic and silver-gold metal, the board offers exceptional electrical conductivity and thermal resistance. This ensures reliable operation across a wide temperature spectrum, from -40°C to +70°C.
The board’s modular design enables quick and efficient installation, reducing downtime and facilitating easy maintenance. It supports a variety of wiring harnesses through its connection points, ensuring compatibility with diverse industrial setups.
AX Control provides expert support and guidance throughout the procurement process, ensuring that customers receive the right product for their specific needs. Our team of knowledgeable professionals is dedicated to helping you achieve optimal system performance with our high-quality circuit boards.
