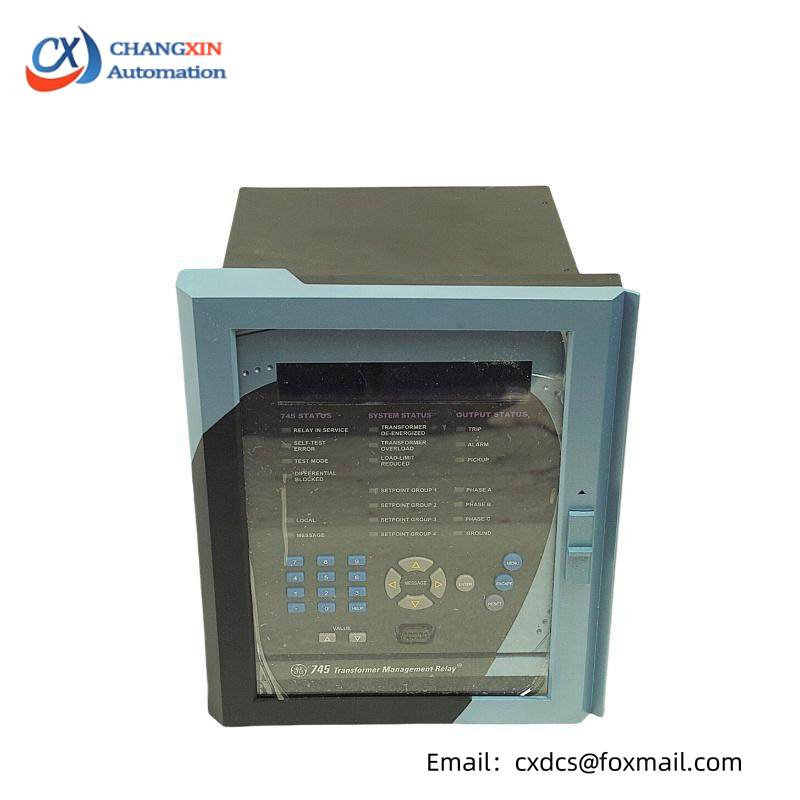

General Electric SR745 CASE 745-W2-P5-G5-HI-T Transformer Management Relay

Windings Per Phase:2

Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display Type:40 character Enhanced LCD

Dimensions:9”H, 7 ⅛”D, 7”W

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

    Engineered for precision and reliability, the GE SR745-CASE 745-W2-P5-G5-HI-T Transformer Management Relay is a critical component in managing transformer operations across industries. With its enhanced display and robust logic input capabilities, it ensures real-time monitoring and quick response to system events.

    Featuring a high-resolution 40 character LCD display, this relay offers a clear and comprehensive overview of system status, facilitating easy troubleshooting and maintenance. Its compact yet sturdy design makes it suitable for integration into various industrial settings, including those with limited space constraints.

    The GE SR745-CASE 745-W2-P5-G5-HI-T is equipped with advanced features such as dynamic CT ratio mismatch correction, overexcitation protection, and transformer overload protection. These functionalities significantly enhance the operational safety and efficiency of transformer systems, contributing to overall energy conservation and operational excellence.

    Innovative LED indicators provide instant feedback on system health, alerting operators to potential issues before they escalate into major failures. This proactive approach minimizes downtime and maintenance costs, making the GE SR745-CASE 745-W2-P5-G5-HI-T a valuable asset for industries relying on stable and reliable power supply.

    Backed by GE‘s reputation for quality and innovation, the GE SR745-CASE 745-W2-P5-G5-HI-T Transformer Management Relay is designed to withstand harsh industrial environments, offering a long service life and reduced maintenance requirements. It is compatible with a wide range of systems, making it a versatile solution for transformer management needs.
