Dimensions:7.7 x 11.9 x 16.7 inches (196 x 302 x 426 mm)
Weight:22.0 lbs (9.98 kg)
Output Current:45 Amperes
Nominal Drive Voltage:360-480 Volts (3 Phase)
Wattage:22 kWatts
Input Voltage Range:324-528V rms, 3-phase
Input Frequency Range:47-63 Hz
Main AC Input Current:71.0 Ampere nominal, 62.2 Ampere inrush
DC Input Voltage for Common Bus Follower:458-747V DC
Safety Feature:Safe Torque-off
Series Availability:Standard, Standard or Peak Enhanced, and Peak Enhanced options
Operating Temperature:0…50 °C (32…122 °F)
Relative Humidity:5…95% noncondensing
Operating Altitude:Similar to other Kinetix modules, with derating for 1000 m (3281 ft) and 3000 m (9843 ft)

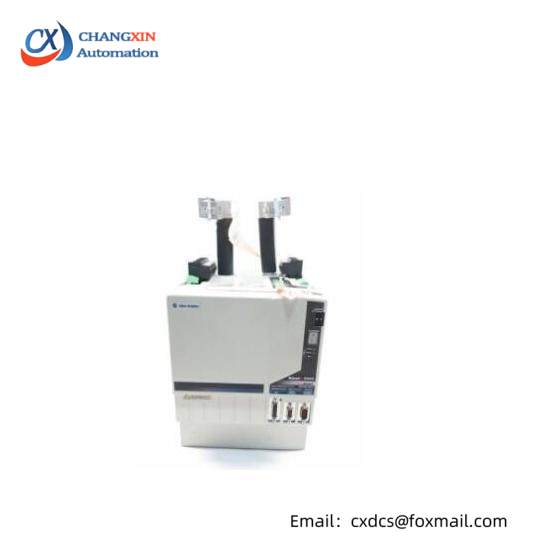

Engineered for precision and reliability, the AB 2094-BC07-M05-M Integrated Axis Module delivers exceptional performance for industrial automation tasks. Its robust design ensures seamless operation within the most demanding environments.
Featuring a wide input voltage range and high output current capacity, this module is versatile enough to handle a variety of industrial applications, from high-speed processing to heavy-duty machinery control.
With its built-in Safe Torque-off feature, the module provides enhanced safety measures during system shutdowns, ensuring operator safety and minimizing operational disruptions.
Available in three series (A, B, C) to cater to different levels of load handling and enhanced performance requirements, allowing users to select the optimal configuration for their specific needs.
Designed with efficiency in mind, the AB 2094-BC07-M05-M supports energy-saving practices through its optimized power consumption and advanced control algorithms, contributing to sustainable operations.
