Product Type:Discrete I/O Module
Product ID:BMXDDM16022
Schneider Type Designation:BMXDDM
Series:Modicon M340 X80
Function:Digital Input/Output
Supply Voltage:(DC) 24V
Current Consumption:(3.3Vdc) 0.1 A
Environmental Resistance:Conformal Coated PCB
Channels:16
Input Type:Digital Inputs (Sink)
Output Type:Solid State Outputs
Input Voltage Range:24 V DC
Positive Output Voltage:24 V 19…30 V DC
Power Dissipation:<= 3.7 W
Current Consumption at 3.3 V DC:<= 111 mA
Current Consumption at 24 V DC:<= 67 mA
Product Weight:0.115 kg

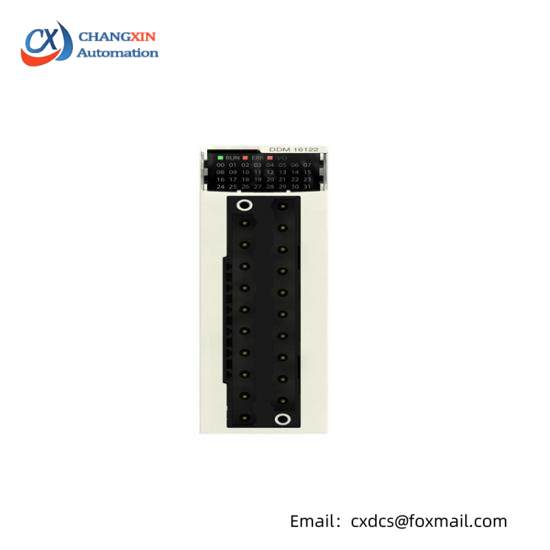

The Schneider Electric BMXDDM16022H Discrete Mixed I/O Module is a premium choice for industrial control applications, boasting a robust design that ensures optimal performance under harsh conditions. This module seamlessly integrates with the Modicon M340 X80 PLC system, providing efficient data processing and transmission capabilities.
Featuring a total of 16 digital inputs (DI) and 16 digital outputs (DO), the BMXDDM16022H enables precise control over various equipment and processes. The module supports both positive logic and negative logic, making it versatile for a wide array of applications.
Equipped with a conformal-coated printed circuit board (PCB), this I/O module is highly resistant to dust, moisture, and corrosion, ensuring reliability in industrial environments. Its compact size and lightweight design facilitate easy installation and integration within existing systems.
With an operating temperature range from -20°C to +55°C, the BMXDDM16022H is suitable for use in extreme climates, enhancing its applicability across diverse industries. The module also supports a 24V DC power supply, ensuring stable operation and compatibility with various power sources.
The inclusion of a communication interface based on Modbus RTU protocol facilitates smooth communication with other devices, enabling seamless automation of production lines and enhancing operational efficiency. This module is an essential component for achieving streamlined and accurate control in modern industrial settings.
