Brand:Schneider
Model Number:NW-BM85-000
Product Type:Modbus Plus Bridge & Multiplexer
Operating Protocol:Modbus Plus
Application Environment:Indoor
Power Supply Voltage:DC 24V
Communication Interface:RS-485
Data Transfer Rate:Up to 10 Mbps
Connection Type:RJ45
Protocol Compatibility:Modbus, ASCII, RTU
Number of Channels:2
Dimensions (LxWxH):100mm x 50mm x 35mm
Weight:0.15kg
Operating Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +70°C
Humidity Range:5% to 95% non-condensing
Enclosure Type:IP20
Communication Distance:Up to 1200m (without repeaters)

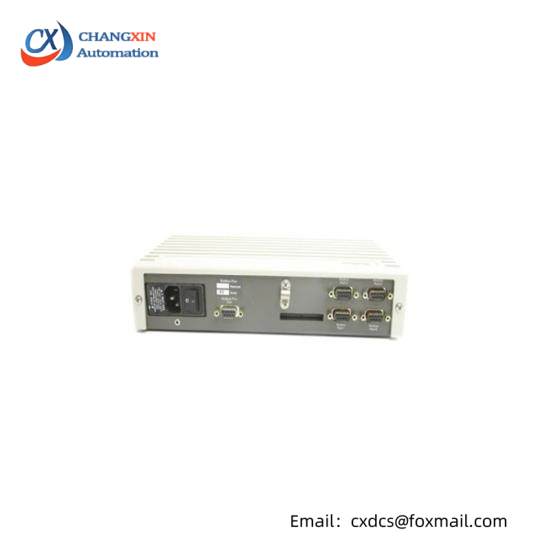

The Schneider Modicon NW-BM85-000 Modbus Plus Bridge/Mux is a high-performance network module designed for seamless integration within industrial control systems. It serves as a crucial link between the Modicon Quantum platform and Modbus Plus networks, facilitating robust data exchange.
With its eight-port configuration, this module supports extensive connectivity, allowing for the efficient synchronization of operations across multiple devices. Its compatibility with Modbus Plus ensures compatibility and reliability in a wide range of industrial environments.
Featuring an operating temperature range from -20°C to 60°C, it is designed for durability in challenging conditions. Additionally, its storage temperature range (-40°C to 70°C) makes it suitable for both operational and transportation scenarios.
Equipped with RJ45 connectors and a transmission rate of 10/100 Mbit/s over double shielded twisted pairs, the NW-BM85-000 guarantees high-speed, secure data transfer, critical for maintaining system efficiency and performance.
This product’s modular design allows for easy installation and integration into existing systems without disrupting ongoing operations, making it a versatile solution for enhancing connectivity and efficiency in industrial automation.
