Number of Inputs/Outputs:8 Inputs / 12 Outputs
Operating Voltage:DC 24V
Communication Protocol:Modbus RTU
Operating Temperature Range:-20°C to +60°C
Dimensions (WxHxD):120mm x 96mm x 90mm
Connectors:M12 x 10-pin connector
Relay Rating:250VAC, 1A @ 250VAC, 0.5A @ 24VDC
Operating Humidity Range:5% to 95% non-condensing

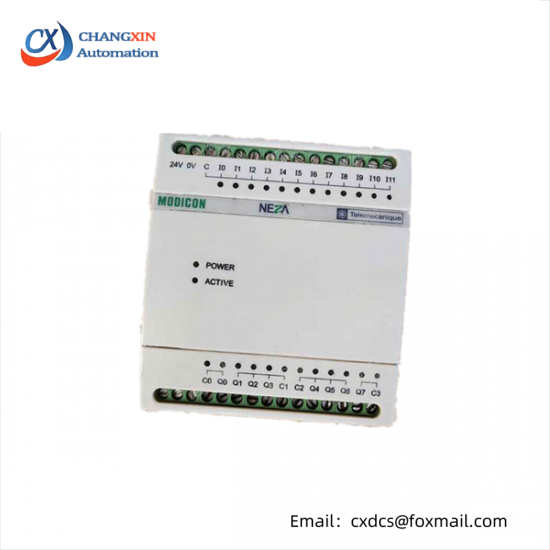

Engineered with precision for industrial environments, the Schneider TSX08ED12RD Expansion Module significantly enhances system capabilities by providing a robust platform for data acquisition and control.
Featuring 8 high-precision analog input channels, this module allows for the accurate measurement of various electrical parameters, making it ideal for applications requiring detailed process monitoring.
With 12 digital relay outputs, the TSX08ED12RD enables precise control over machinery and processes, ensuring smooth operation and efficient management of industrial tasks.
The module supports Modbus RTU communication, facilitating easy integration with existing control systems and simplifying network setup for streamlined data exchange.
Designed for extreme conditions, this expansion module operates reliably within a wide temperature range (-20°C to +70°C) and maintains stable performance even under varying humidity levels (5% to 95% RH), ensuring continuous operation in diverse industrial settings.
