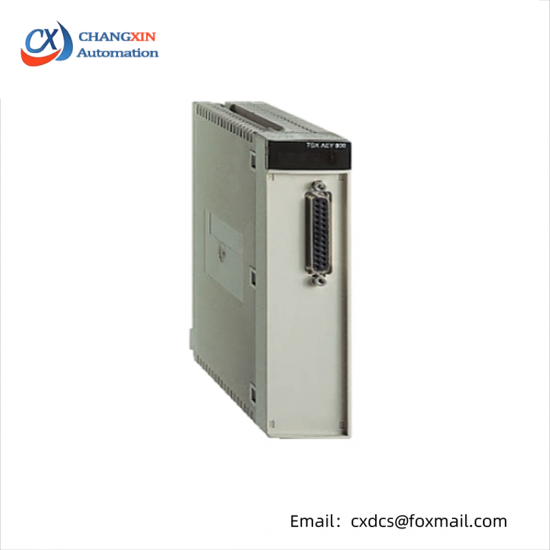

Model Type:TSXAEY800
Product ID:Analog Input Module
Manufacturer:Schneider Electric
Automation Platform:Modicon Premium
Analog Input Channels:8
Input Signal Range:+/- 10VDC
Conversion Resolution:14 bits
Electrical Connection:1 x 25-pin SUB-D Connector
Power Consumption:≤ 50mA @ 5VDC, ≤ 100mA @ 24VDC
Operating Temperature:-25°C to +60°C
Storage Temperature:-40°C to +85°C
The Schneider TSXAEY800 Analog Input Module is engineered to meet the stringent demands of industrial automation environments. With its compact design and robust construction, this module ensures reliable operation under various environmental conditions.
Featuring an 8-channel configuration, it allows for efficient monitoring and control of multiple sensors and actuators simultaneously. Its wide signal range accommodates diverse sensor outputs, enhancing its versatility across different applications.
The module supports a maximum sampling rate of up to 1 kHz, enabling real-time data acquisition and analysis. This feature is particularly beneficial for processes requiring high-speed feedback and control adjustments.
Energy efficiency is prioritized with a power consumption of just 2 watts, making it suitable for energy-conscious systems without compromising performance. The operating temperature range of -20°C to +60°C ensures durability in extreme conditions.
Integrated with an RS-485 interface, the Schneider TSXAEY800 provides a straightforward connection to other devices within the control network. It supports MODBUS RTU communication protocol, facilitating seamless data exchange with PLCs and other compatible devices.
