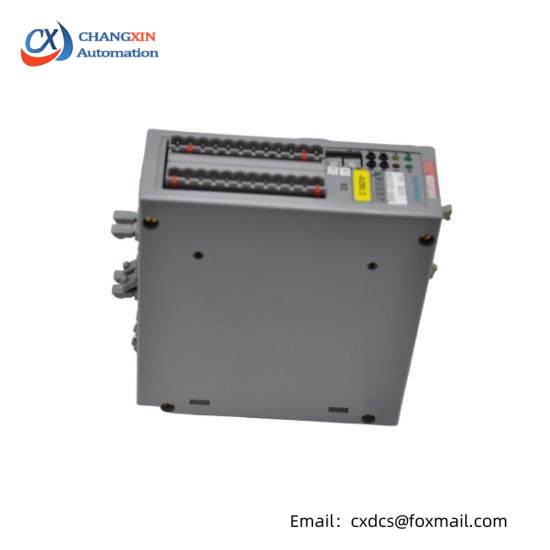

Siemens 6DD2920-0AR6 SA 20.1 Line Supply Sensing Module

Model Type:SA 20.1

Module Class:Line Supply Sensing

Manufacturer:Siemens

Model Number:6DD2920-0AR6

Net Weight (kg):0.7

Periphery Module:EP22/IS1

Signal Proc. Module:EP22 with IS1

Compatibility:Simatic S7-1200, S7-1500, S7-1500 TIA Portal

Operating Voltage:24V DC

Communication Protocol:Profinet

Dimensions (mm):125 x 94 x 100

IP Protection Class:IP20

Operating Temperature Range:-20°C to +60°C

Storage Temperature Range:-40°C to +85°C

    This module from Siemens is specifically engineered for high-precision supply line monitoring, critical in ensuring smooth operation within complex industrial automation systems. With its advanced design, it provides real-time feedback on the status of supply lines, enabling proactive maintenance scheduling and minimizing downtime.

    The 6DD2920-0AR6 SA 20.1 Line Supply Sensing Module boasts a compact yet robust construction, designed to withstand harsh industrial environments. Its wide operating temperature range (-20°C to +60°C) ensures reliability across various conditions, making it suitable for diverse industrial settings.

    Featuring compatibility with Profibus DP communication protocol and RS-485 connectivity, this module seamlessly integrates with existing automation systems, enhancing their efficiency and performance. It supports input voltage from 85V to 264V AC, ensuring compatibility with a wide range of power sources.

    With an output current range of 0.5mA to 20mA, this module offers precise control over supply line parameters. This feature is crucial for optimizing energy consumption and improving overall system performance. Additionally, its low power consumption of ≤5W contributes to sustainable operations.

    Compliance with IEC 61131-2 and EN 61131-3 standards ensures that the 6DD2920-0AR6 meets international safety and functional requirements. This guarantees not only regulatory compliance but also peace of mind for users concerning product reliability and longevity.
