Model Type:Compact CPU
Manufacturer:Siemens
Model Number:6ES7 314-6EH04-0AB0
Work Memory:192 KB
Inputs:24 DI
Outputs:16 DO
Analog Inputs:4 AI
Analog Outputs:2 AO
Temperature Measurement:1 Pt100
High-Speed Counters:4 (60 kHz)
Communication Interfaces:MPI/DP 12 Mbit/s, Ethernet PROFINET with 2-port switch
Power Supply:Integrated 24 V DC
Dimensions:13.20 x 15.30 x 12.70 cm
Weight:0.802 kg
Front Connector:2x 40-pole
Required Components:Micro Memory Card

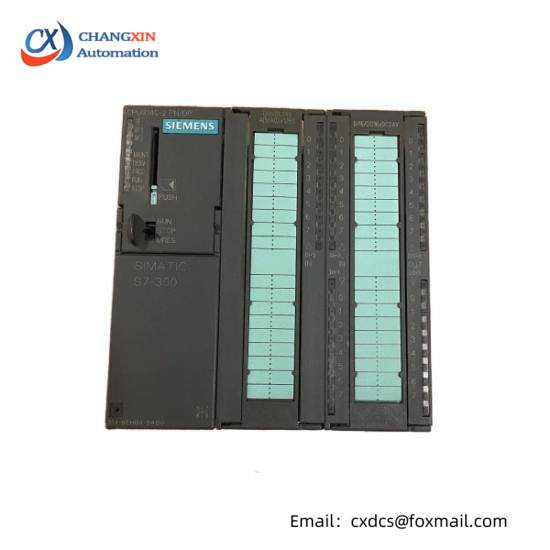

The Siemens 6ES7 314-6EH04-0AB0 CPU 314C-2PN/DP Compact CPU is designed to meet the demanding needs of industrial automation environments. This compact yet powerful controller offers an extensive range of inputs and outputs, ensuring versatile control applications across various industries.
With its robust 192 KB work memory, the CPU provides ample space for storing programs and data, facilitating complex operations without sacrificing performance. The inclusion of 24 digital inputs (DI) and 16 digital outputs (DO) enables precise control over machinery and processes.
The 4 analog inputs (AI) and 2 analog outputs (AO) offer flexible interfacing options for process control systems, while the built-in capability to handle 4 high-speed counters at 60 kHz supports precise timing and synchronization requirements in automation tasks.
Equipped with an integrated MPI/DP interface at 12 Mbit/s and Ethernet PROFINET with a 2-port switch, this CPU ensures seamless communication within industrial networks, enhancing connectivity and system integration.
Powered by a compact yet reliable 24 V DC integr. power supply, the Siemens 6ES7 314-6EH04-0AB0 ensures continuous operation even under harsh industrial conditions. Its compact size makes it ideal for space-constrained environments, maximizing utility without compromising on functionality.
Designed for ease of use and integration, this CPU comes with a front connector compatible with a 2x 40-pin configuration, facilitating quick installation and connection to other devices in the system. Additionally, the requirement of a Micro Memory Card ensures secure storage and backup of critical data.
