Model Number:6ES7138-4DA04-0AB0
Manufacturer:SIEMENS
Operating Mode:Count, Measure, Cycle Duration Measurement
Resolution:High-resolution
Frequency Compatibility:100 kHz
Installation Width:15 mm
Measurement Range:24 V
Cycle Time:0.5 ms
Input Current:+/-20mA
Bit Resolution:15 bit + sign
Output Current Range:4..20mA
Operating Limit:±0.1%
Fault Indication:SF LED (Group Fault)

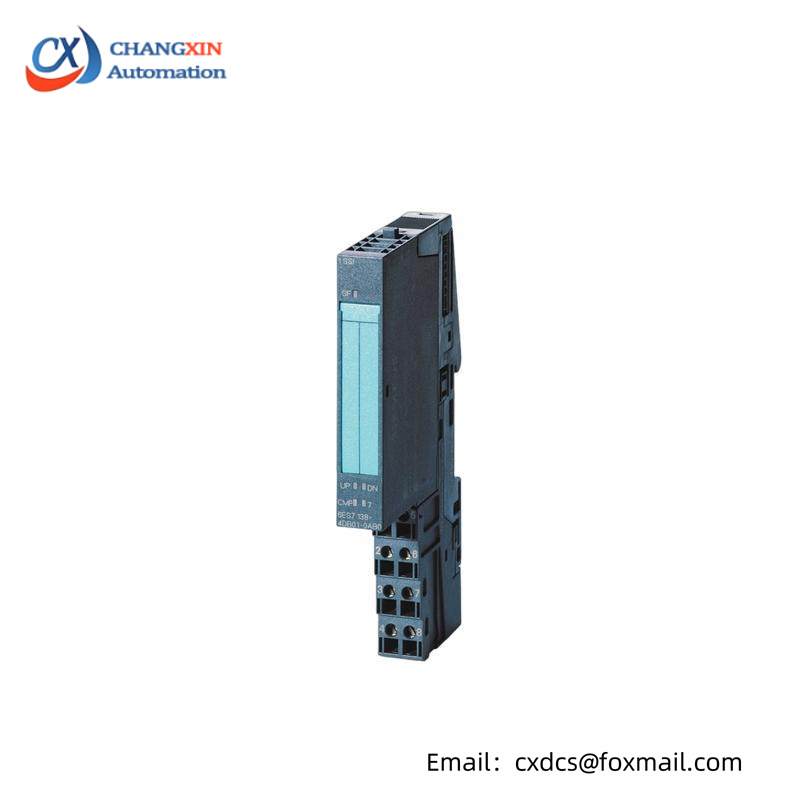

The SIEMENS 6ES7138-4DA04-0AB0 DP Electronics Module is a critical component in industrial automation systems, engineered for precision and reliability. It is specifically designed for use with ET 200S platforms, providing accurate measurement and cycle synchronization capabilities.
This module boasts a compact design with a 15 mm installation width, ensuring efficient space utilization in control panels. Its high-resolution measurement capability allows for precise data acquisition, making it ideal for applications requiring high accuracy.
With support for various operational modes including count, measure, and cycle duration measurement, this module offers flexibility to adapt to diverse application needs. The inclusion of an internal EMI filter ensures robust performance against electromagnetic interference, enhancing system stability.
Featuring cycle times of just 0.5 ms, this module ensures rapid processing speeds, crucial for real-time control applications. The ±20mA input current range and 15-bit resolution provide a wide dynamic range and high precision, supporting accurate signal interpretation.
Moreover, the module’s ±0.1% operational limit, monitored by an SF LED indicator, ensures immediate detection of faults, facilitating quick maintenance actions and minimizing downtime. This feature is particularly beneficial in mission-critical industrial settings, where reliability is paramount.
