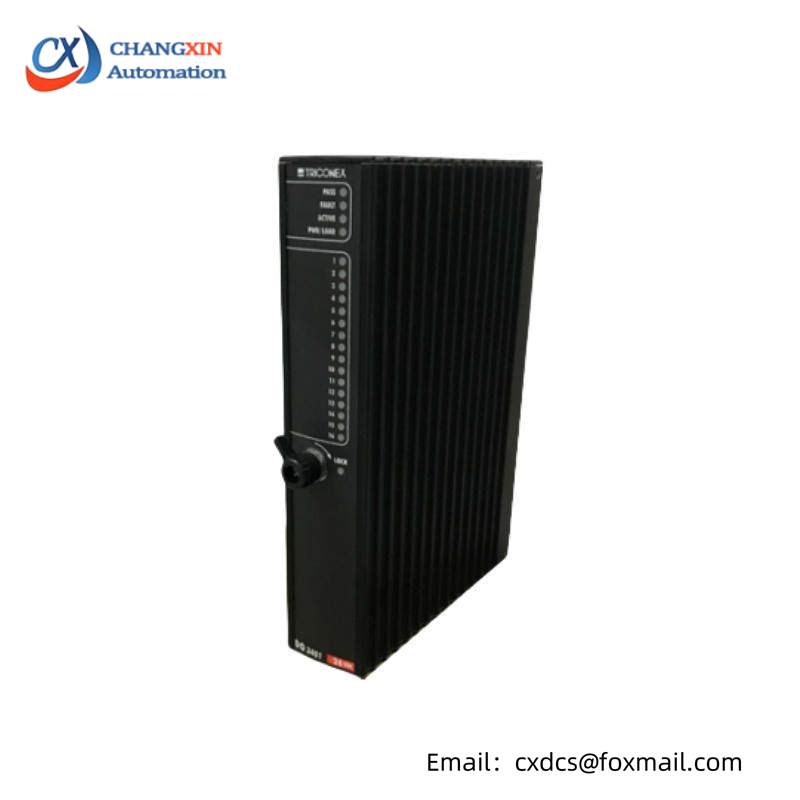

Triconex D03401 – DO3401 Digital Output Module, Precision Control Solutions for Industrial Automation

Type:PLC Digital Output Module

Model Number:DO3401

Manufacturer:Triconex

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Switching Output Current (Self-Limiting):<4.8 A, typical 3.0 A

Degraded Mode Output Current (Self-Limiting):> 0.7 A, typical 1.5 A

Field Alarms:[“Loss of field power”,”Output point shorted”]

Loop-back Thresholds:[“0–5 VDC = Off region”,”6–14 VDC = transition region”,”15–30 VDC = On region”]

Leakage to Load (Off State Glitch):<2 ms

Diagnostic (Loss of View):Force-to-value diagnostic (FVD), <2 ms/test

Maximum Input Toggle Rate:<20/sec

FVD Off State Glitch Duration:<2 ms

Magnitude:≈36% test voltage

Output Impedance:0–5 VDC, ≈ 100 kΩ

ADC Scan Time:<1 ms for all 32 points

Functional Earth to Protective Earth Isolation:500 VDC, minimum

Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum
