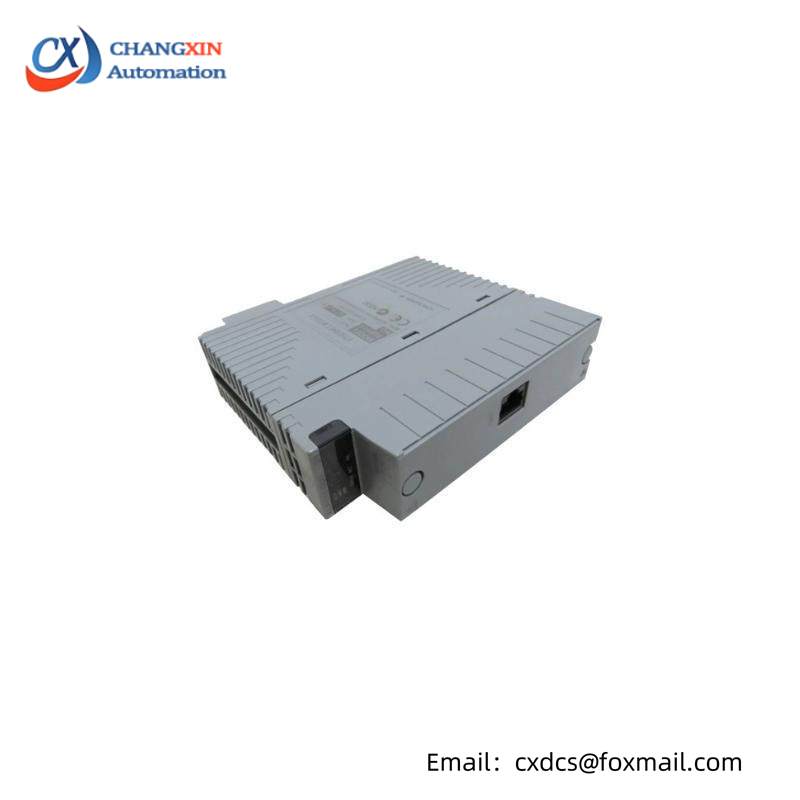

Yokogawa ALE111-S51 S1 Industrial Ethernet Communication Module

Physical Layer Interface:IEEE 802.3 10BASE-T

Connection Method:Point-to-point

Connector:RJ-45

Communication Function:Half-duplex

Transmission Speed:10 Mbps

Transmission Route:100 ohm twisted-pair cable (non-shielded)

Transmission Distance:1 segment, 100 m (between FCS and subsystems, or HUB and subsystems)

Installation Method:Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40

Number of Ports:1 port

Media Access Control:CSMA/CD

    Engineered with precision, the Yokogawa ALE111-S51 S1 Ethernet Communication Module ensures reliable data transmission across industrial networks. Its robust design withstands harsh environmental conditions, making it ideal for applications requiring high-speed and dependable connectivity.

    Featuring an IEEE802.3 10BASE-T physical layer interface, this module offers a straightforward connection method via RJ-45 connector, compatible with a wide range of devices and systems. It operates in a half-duplex mode, ensuring efficient data flow without interference.

    With a transmission speed of 10 Mbps over 100 ohm twisted-pair cables, the module guarantees fast data transfer within segments of up to 100 meters, ideal for direct connections between field controllers, subsystems, or hubs and peripheral devices.

    Ease of installation is further enhanced with compatibility on various mounting options, including ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, and AFV40, ensuring flexibility in deployment across different industrial setups.

    Equipped with CSMA/CD media access control, the module efficiently manages data traffic, minimizing delays and ensuring optimal network performance. This feature is particularly advantageous in environments with multiple concurrent data streams, ensuring smooth operation without data collisions.
